TCK301G,LF(S - Toshiba

Description: Power Switch/Driver 1:1 N-Channel 3A 9-WCSP (1.5x1.5)28 28 V,3.0 A

Download TCK301G,LF(S Model

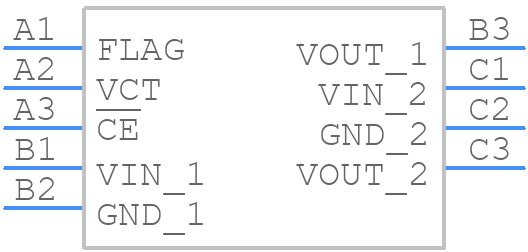

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCK301G,LF(S - Toshiba PCB footprint - Other - Other - S-UFBGA9-0202-0.50-001
click to zoom
3D Models
TCK301G,LF(S - Toshiba  - 3D model - Other - S-UFBGA9-0202-0.50-001
click to zoom

TCK301G,LF(S Details

  • Manufacturer Part Number:

    TCK301G,LF(S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.83

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XBGA-B9

  • Length:

    1.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, ULTRA THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.58 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.6V

  • Width:

    1.5 mm

TCK301G,LF(S Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a heat sink.
  • To ensure proper biasing, the input voltage (VIN) should be within the recommended range (4.5V to 18V), and the output voltage (VOUT) should be set to the desired value using the feedback resistors (RFB1 and RFB2). Additionally, the input capacitor (CIN) should be selected based on the input voltage ripple and the output capacitor (COUT) should be selected based on the output voltage ripple and load requirements.
  • The maximum allowable ripple current for the input capacitor (CIN) is typically 1A to 2A, and for the output capacitor (COUT) it is typically 2A to 5A, depending on the specific capacitor selection and operating conditions. It's essential to check the capacitor datasheet for the recommended ripple current rating.
  • To protect the device from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a voltage monitor IC that can detect and respond to voltage faults. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the device from voltage transients and spikes.
  • The recommended operating temperature range for the TCK301G,LF(S is -40°C to +125°C. However, the device can operate up to +150°C with derating. It's essential to ensure the device is operated within the recommended temperature range to ensure reliability and performance.
