TCK301G,LF - Toshiba

Description: Power Switch ICs - Power Distribution Load Switch IC 3.0A 28V 73mohm

Download TCK301G,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

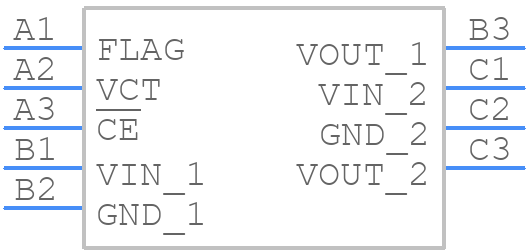

TCK301G,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK301G,LF - Toshiba PCB footprint - BGA - BGA - WCSP9
click to zoom
3D Models
TCK301G,LF - Toshiba - 3D model - BGA - WCSP9
click to zoom

TCK301G,LF Details

  • Manufacturer Part Number:

    TCK301G,LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XBGA-B9

  • Length:

    1.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, ULTRA THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.58 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.6V

  • Width:

    1.5 mm
