TCK321G,LF - Toshiba

Description: Power Switch ICs - Power Distribution Load Switch IC 2.0A 36V 98mohm

Download TCK321G,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

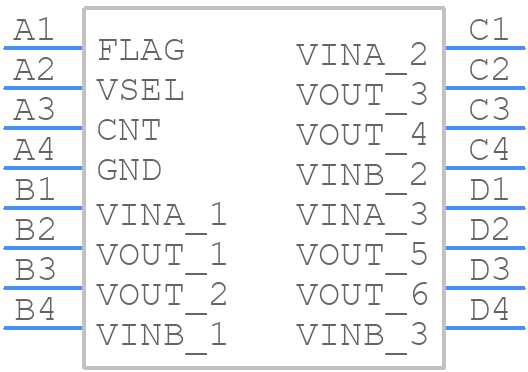

TCK321G,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK321G,LF - Toshiba PCB footprint - BGA - BGA - TCK321G,LF
click to zoom
3D Models
TCK321G,LF - Toshiba - 3D model - BGA - TCK321G,LF
click to zoom

TCK321G,LF Details

  • Manufacturer Part Number:

    TCK321G,LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.9 mm

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.58 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.6V

  • Width:

    1.9 mm

TCK321G,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Ensure the input voltage (VIN) is within the recommended range (4.5V to 18V), and the enable pin (EN) is properly biased to turn the device on or off.
  • The maximum allowed power dissipation for the TCK321G,LF is 2.5W, and it's essential to ensure the device operates within this limit to prevent overheating and damage.
  • The TCK321G,LF is rated for operation up to 125°C, but it's essential to consider the derating curve and ensure the device operates within the recommended temperature range to maintain reliability.
  • Implement overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits to prevent damage from voltage transients and ensure the device operates within the recommended voltage range.
