TCK420G,L3F - Toshiba

Description: Gate Drivers GATE DRIVER IC VIN:2.7-28V

Download TCK420G,L3F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

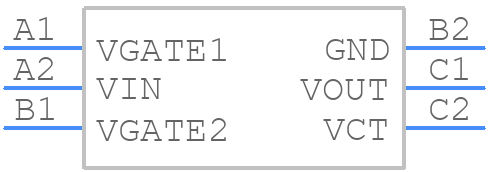

Symbol
TCK420G,L3F - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCK420G,L3F - Toshiba PCB footprint - BGA - BGA - WCSP6G
click to zoom
3D Models
TCK420G,L3F - Toshiba - 3D model - BGA - WCSP6G
click to zoom

TCK420G,L3F Details

  • Manufacturer Part Number:

    TCK420G,L3F

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.35 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm

TCK420G,L3F Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure proper heat sinking, and consider using a thermal interface material (TIM) to reduce thermal resistance.
  • The maximum allowed voltage for the gate-source (Vgs) is ±20V, and for the gate-drain (Vgd) it's ±20V, but it's recommended to keep it within ±15V for reliable operation.
  • Yes, the TCK420G,L3F is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the gate drive requirements, layout, and parasitic inductances to minimize switching losses.
  • Toshiba recommends a gate drive voltage of 10V to 15V and a current of 1A to 2A to ensure fast switching times and minimize power losses.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCK420G,L3F Overview

Use the download button to access the TCK420G,L3F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCK42, or try a keyword search, such as MOSFET Drivers
