Part Image

TCKE903QNA - Toshiba

Description: 3.0 to 23 V/4.0 A eFuse IC, 34 mΩ, WSON8 ,25 v ,2w ,150 ℃ .

Download TCKE903QNA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

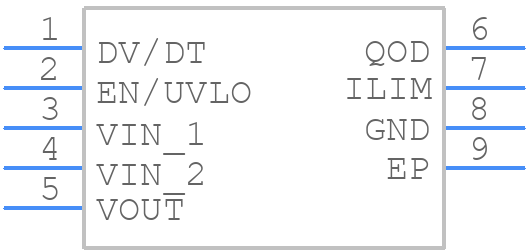

Symbol
TCKE903QNA - Toshiba - PCB symbol
click to zoom
PCB Footprints
TCKE903QNA - Toshiba PCB footprint - Other - Other - TCKE903QNA-1
click to zoom
3D Models
TCKE903QNA - Toshiba - 3D model - Other - TCKE903QNA-1
click to zoom

TCKE903QNA Details

  • Manufacturer Part Number:

    TCKE903QNA

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Analog IC - Other Type:

    eFUSE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCKE903QNA Overview

Use the download button to access the TCKE903QNA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCKE9, or try a keyword search, such as Power Management Circuits
