Texas Instruments provides a recommended PCB layout in the TCM1050DR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
The TCM1050DR has a maximum ambient temperature rating of 85°C, but it can operate up to 105°C with derating. It's essential to consider the thermal design and heat sinking to ensure reliable operation within the specified temperature range.
Yes, the TCM1050DR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with the specific application requirements.
To troubleshoot issues with the TCM1050DR, start by reviewing the datasheet and application notes. Check the input voltage, current, and frequency, as well as the output voltage and current. Verify the PCB layout and component selection. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult the Texas Instruments support resources, such as the E2E forum or technical support team, for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCM1050DR Overview

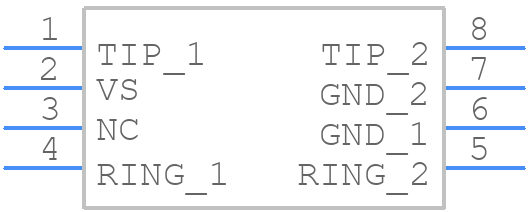

Use the download button to access the TCM1050DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCM10,
or try a keyword search, such as Silicon Surge Protectors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
