TCMT4100T0 - Vishay

Description: Transistor Output Optocouplers AC Input, Phtotrnstr 50-600% CTR 5mAVDE-

Download TCMT4100T0 Model

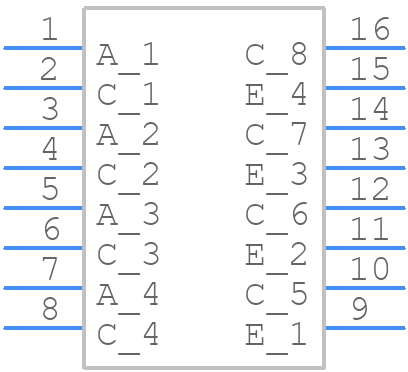

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCMT4100T0 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 16 lead
click to zoom
3D Models
TCMT4100T0 - Vishay  - 3D model - Small Outline Packages - 16 lead
click to zoom

TCMT4100T0 Details

  • Manufacturer Part Number:

    TCMT4100T0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MINI-FLAT, SOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.6 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    YES

TCMT4100T0 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, with multiple vias to dissipate heat to the inner layers or the backside of the PCB. This helps to reduce thermal resistance and improve heat dissipation.
  • To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the device, and to follow proper PCB assembly and handling procedures to prevent moisture ingress. Additionally, the device should be stored in a dry, nitrogen-filled environment when not in use.
  • The maximum allowable voltage for the TCMT4100T0 is 5.5V, as specified in the datasheet. Exceeding this voltage may cause permanent damage to the device.
  • To troubleshoot issues with the device not turning on, check the power supply voltage, ensure that the enable pin is properly biased, and verify that the input voltage is within the recommended range. Also, check for any short circuits or damage to the device or PCB.
  • The recommended storage condition for the TCMT4100T0 is in a dry, nitrogen-filled environment, with a temperature range of -40°C to 125°C, and a relative humidity of 50% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCMT4100T0 Overview

Use the download button to access the TCMT4100T0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCMT4, or try a keyword search, such as Optocoupler
