TCN4477M016R0100 - Kyocera AVX

Description: Tantalum Capacitors - Polymer SMD 16V 470uF 20% 2924 ESR=100mOhm

Download TCN4477M016R0100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TCN4477M016R0100 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

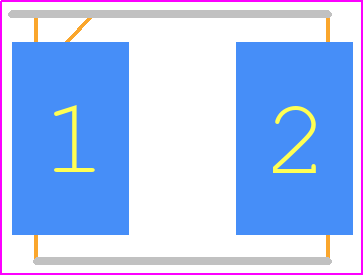

TCN4477M016R0100 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - TCN4477M016R0100
click to zoom
3D Models
TCN4477M016R0100 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - TCN4477M016R0100
click to zoom

TCN4477M016R0100 Details

  • Manufacturer Part Number:

    TCN4477M016R0100

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Capacitance:

    470 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (SOLID POLYMER)

  • Leakage Current:

    0.752 mA

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Packing Method:

    TR, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    966 mA

  • Size Code:

    2924

  • Surface Mount:

    YES

  • Tan Delta:

    0.2

  • Terminal Shape:

    WRAPAROUND

TCN4477M016R0100 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the TCN4477M016R0100 is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Yes, the TCN4477M016R0100 is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 10G acceleration, and 3 hours per axis.
  • The TCN4477M016R0100 has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.
  • Yes, the TCN4477M016R0100 is designed to operate in humid environments, with a humidity rating of 85°C/85% RH for 1000 hours.
  • The recommended storage condition for the TCN4477M016R0100 is in a dry, cool place with a temperature range of -10°C to 40°C and relative humidity below 70%.
