Technical Content
Part Image

TCO1-462+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MT / RoHS

Download TCO1-462+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

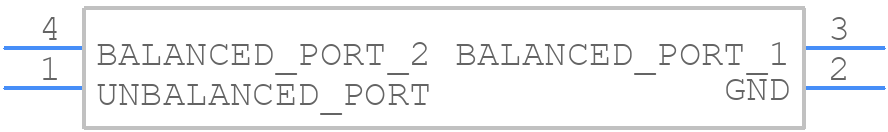

TCO1-462+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCO1-462+ - Mini-Circuits PCB footprint - Other - Other - NK0402C
click to zoom
3D Models
TCO1-462+ - Mini-Circuits - 3D model - Other - NK0402C
click to zoom

TCO1-462+ Details

  • Manufacturer Part Number:

    TCO1-462+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    5900 MHz

  • Cut-off Frequency-Min:

    3300 MHz

  • Height:

    0.38 mm

  • Insertion Loss:

    0.8 dB

  • Length:

    1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.51 mm

TCO1-462+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the TCO1-462+ is 100W CW, but it's recommended to derate the power to 50W CW for optimal performance and reliability.
  • The TCO1-462+ is designed to operate from -20°C to +65°C, but it can be customized for high-temperature applications up to 125°C with special screening and testing.
  • The TCO1-462+ is not designed for outdoor use and should be used in a controlled environment. However, it can be customized with environmental sealing and protective coatings for outdoor applications.
  • The TCO1-462+ is designed to operate in a relative humidity of up to 95%, but it's recommended to use it in a controlled environment with a relative humidity of up to 80% for optimal performance and reliability.
  • The typical insertion loss of the TCO1-462+ is around 0.5 dB, but it can vary depending on the frequency and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCO1-462+ Overview

Use the download button to access the TCO1-462+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCO1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
