TCP-2-33+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download TCP-2-33+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

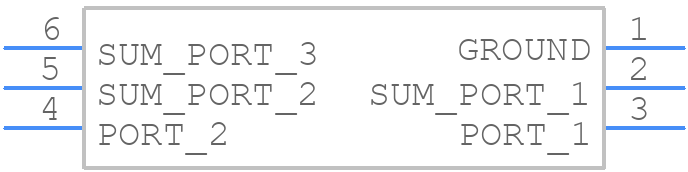

Symbol
TCP-2-33+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCP-2-33+ - Mini-Circuits PCB footprint - Other - Other - TCP-2-33+-2
click to zoom
3D Models
TCP-2-33+ - Mini-Circuits - 3D model - Other - TCP-2-33+-2
click to zoom

TCP-2-33+ Details

  • Manufacturer Part Number:

    TCP-2-33+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE DB714, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.9

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.9 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    2

TCP-2-33+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TCP-2-33+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The maximum power handling of the TCP-2-33+ is 1W. Exceeding this power limit can cause damage to the device. Make sure to derate the power handling based on the operating frequency and temperature to ensure reliable operation.
  • Common issues with the TCP-2-33+ include poor return loss, high insertion loss, and overheating. To troubleshoot, check the PCB layout, impedance matching, and power handling. Use a vector network analyzer to measure the S-parameters and identify the root cause of the issue.
  • Yes, the TCP-2-33+ is suitable for high-reliability applications. Mini-Circuits is a reputable manufacturer, and the TCP-2-33+ is a high-quality component with a proven track record in various industries, including aerospace, defense, and telecommunications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCP-2-33+ Overview

Use the download button to access the TCP-2-33+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCP-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
