TCPP03-M20 - STMicroelectronics

Description: USB Type C Overvoltage Protection for VBUS and CC Lines 4V 20-Pin QFN T/R - Tape and Reel

Download TCPP03-M20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

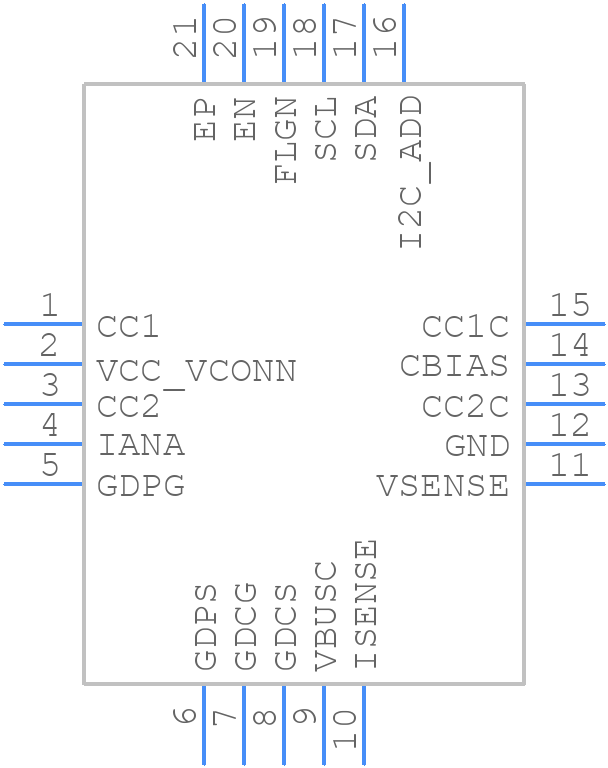

TCPP03-M20 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TCPP03-M20 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-20L 4.0 x 4.0 x 0.75 mm package information
click to zoom
3D Models
TCPP03-M20 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-20L 4.0 x 4.0 x 0.75 mm package information
click to zoom

TCPP03-M20 Details

  • Manufacturer Part Number:

    TCPP03-M20

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    Adjustable Current Limit

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2.7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    2.4

  • Width:

    4 mm

TCPP03-M20 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TCPP03-M20 is -40°C to 125°C.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Also, ensure the PCB is designed with a suitable thermal pad and solder mask to prevent thermal damage.
  • The recommended PCB layout for the TCPP03-M20 includes a solid ground plane, a separate power plane for the input voltage, and a thermal pad for heat dissipation. The layout should also minimize parasitic inductance and capacitance.
  • To protect the TCPP03-M20 from overvoltage and overcurrent, use a voltage regulator with overvoltage protection and a current limiter. Additionally, consider adding a fuse or a polyfuse to prevent damage from excessive current.
  • The recommended input capacitor value for the TCPP03-M20 is 10uF to 22uF, with a voltage rating of 50V or higher. The capacitor should be placed as close as possible to the input pins of the device.
