TCR13AGADJ,LF - Toshiba

Description: LDO Voltage Regulators CMOS point regulator 1300mA, output: 3.3V

Download TCR13AGADJ,LF Model

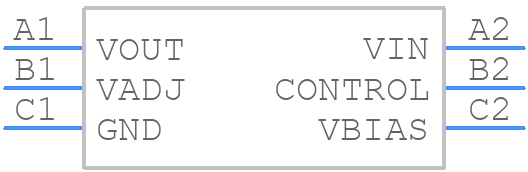

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCR13AGADJ,LF - Toshiba PCB footprint - Other - Other - WCSP6F
click to zoom
3D Models
TCR13AGADJ,LF - Toshiba  - 3D model - Other - WCSP6F
click to zoom

TCR13AGADJ,LF Details

  • Manufacturer Part Number:

    TCR13AGADJ,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.163 V

  • Dropout Voltage1-Nom:

    0.092 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Load Regulation-Max(%):

    0.36%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.3 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.55 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    0.8 mm
