TCR15AG09,LF - Toshiba

Description: LDO Regulator Pos 0.9V 0.2A 6-Pin WCSP-F T/R

Download TCR15AG09,LF Model

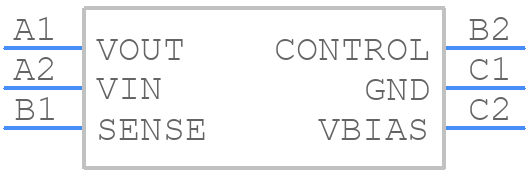

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCR15AG09,LF - Toshiba PCB footprint - BGA - BGA - WCSP6F
click to zoom
3D Models
TCR15AG09,LF - Toshiba  - 3D model - BGA - WCSP6F
click to zoom

TCR15AG09,LF Details

  • Manufacturer Part Number:

    TCR15AG09,LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.216 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.116 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.003%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    0.918 V

  • Output Voltage1-Min:

    0.882 V

  • Output Voltage1-Nom:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Voltage Tolerance-Max:

    2%

  • Width:

    0.8 mm

TCR15AG09,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or thermal management system, and ensure the device is operated within the recommended temperature range (TJ = -40°C to 150°C).
  • The maximum allowed voltage for the input pins is 5.5V, which is the absolute maximum rating. For reliable operation, it's recommended to keep the input voltage within the recommended operating range (VCC = 3.3V ± 10%).
  • The TCR15AG09,LF is designed for low-frequency applications (up to 100 kHz). For high-frequency applications, consider using a different device or consulting with Toshiba's application engineers.
  • Implement ESD protection measures such as using ESD-resistant devices, handling the device by the body or pins, and using anti-static packaging and workstations.
