TCR15AG11,LF - Toshiba

Description: LDO Voltage Regulators LDO Linear Voltage Regulator 1.5A 1.1V

Download TCR15AG11,LF Model

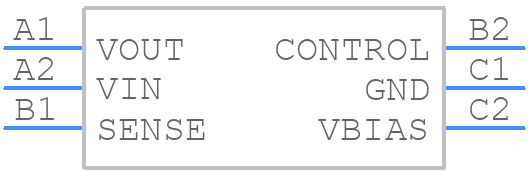

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCR15AG11,LF - Toshiba PCB footprint - BGA - BGA - WCSP6F
click to zoom
3D Models
TCR15AG11,LF - Toshiba  - 3D model - BGA - WCSP6F
click to zoom

TCR15AG11,LF Details

  • Manufacturer Part Number:

    TCR15AG11,LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WCSP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.24 V

  • Dropout Voltage1-Nom:

    0.134 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.34 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.003%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    1.118 V

  • Output Voltage1-Min:

    1.082 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Voltage Tolerance-Max:

    1.64%

  • Width:

    0.8 mm

TCR15AG11,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a heat sink, ensure good airflow, and consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
  • The maximum allowable voltage for the input pins is the same as the supply voltage (VCC), which is 15V for the TCR15AG11,LF.
  • Yes, the TCR15AG11,LF is suitable for switching regulator applications due to its low dropout voltage and high output current capability.
  • The output voltage tolerance can be calculated by adding the output voltage accuracy (±2% for the TCR15AG11,LF) to the output voltage temperature coefficient (±0.5%/°C).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCR15AG11,LF Overview

Use the download button to access the TCR15AG11,LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCR15, or try a keyword search, such as Linear Regulator ICs
