A good PCB layout for the TCS34087M involves keeping the sensor away from high-frequency signals, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. Ams OSRAM provides a recommended PCB layout in their application note AN000141.
Calibration of the TCS34087M involves adjusting the gain and offset values for each channel to compensate for variations in the sensor and the optical system. Ams OSRAM provides a calibration procedure in their application note AN000142, which involves measuring the sensor response to different light sources and calculating the gain and offset values.
The TCS34087M can handle ambient light intensities up to 100,000 lux, which is equivalent to direct sunlight. However, the sensor may saturate at higher intensities, and the accuracy of the measurements may be affected.
Yes, the TCS34087M can be used to measure the color temperature of light sources. The sensor provides color coordinates (x, y) that can be used to calculate the color temperature using the CIE 1931 color space. Ams OSRAM provides an application note AN000143 that describes how to calculate the color temperature from the sensor data.
The power consumption of the TCS34087M depends on the operating mode and the clock frequency. In the lowest power mode, the sensor consumes around 0.5 mA at 1.8V. In the highest power mode, the sensor consumes around 10 mA at 1.8V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCS34087M Overview

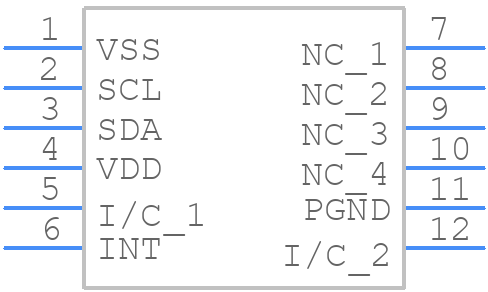

Use the download button to access the TCS34087M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCS34,
or try a keyword search, such as Other Sensors/Transducers
