TCW1-2700+ - Mini-Circuits

Description: 1:1 LTCC Transformer, 700 - 2700 MHz, 50Ω

Download TCW1-2700+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

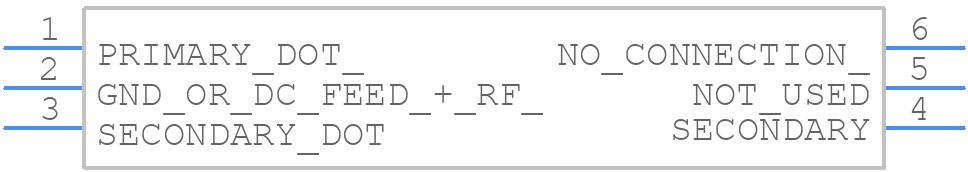

Symbol
TCW1-2700+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TCW1-2700+ - Mini-Circuits PCB footprint - Other - Other - JC0603C _2022
click to zoom
3D Models
TCW1-2700+ - Mini-Circuits - 3D model - Other - JC0603C _2022
click to zoom

TCW1-2700+ Details

  • Manufacturer Part Number:

    TCW1-2700+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Cut-off Frequency-Min:

    700 MHz

  • Height:

    0.61 mm

  • Insertion Loss:

    2 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    0.79 mm

TCW1-2700+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components and their values.
  • The maximum power handling capability of the TCW1-2700+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power without degradation. Higher power levels may require additional heat sinking or derating.
  • While the TCW1-2700+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching speed and frequency should be limited to minimize ringing and ensure reliable operation. Consult with Mini-Circuits' application engineers for specific guidance.
  • The operating temperature range for the TCW1-2700+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications and derating guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TCW1-2700+ Overview

Use the download button to access the TCW1-2700+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCW1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
