For optimal performance, it's recommended to follow a 4-layer PCB stackup with a solid ground plane, and to place thermal vias under the device to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
To ensure reliable operation, it's essential to follow the recommended derating curves for voltage and current, and to implement adequate thermal management. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and adjust the operating conditions accordingly.
The recommended soldering conditions are: peak temperature 260°C, time above 217°C 30 seconds, and time above 183°C 60 seconds. For rework, use a low-temperature soldering iron (350°F/175°C) and avoid applying excessive force or heat to the device.
To troubleshoot issues, start by verifying the power supply and input voltage, then check the output voltage and current. Use an oscilloscope to monitor the output waveform and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on specific troubleshooting steps.
Yes, to minimize EMI/EMC issues, ensure proper PCB layout and grounding, use a common-mode choke or ferrite bead on the input, and consider adding shielding or a metal can to the device. Follow the recommended layout and component placement guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TD01-1006KRL Overview

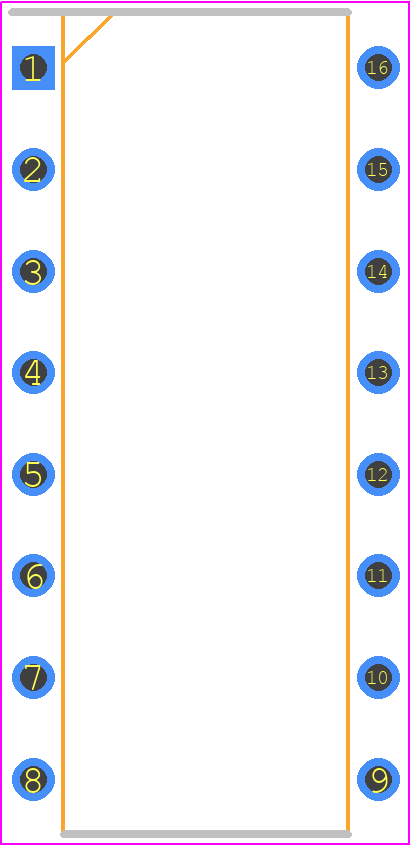

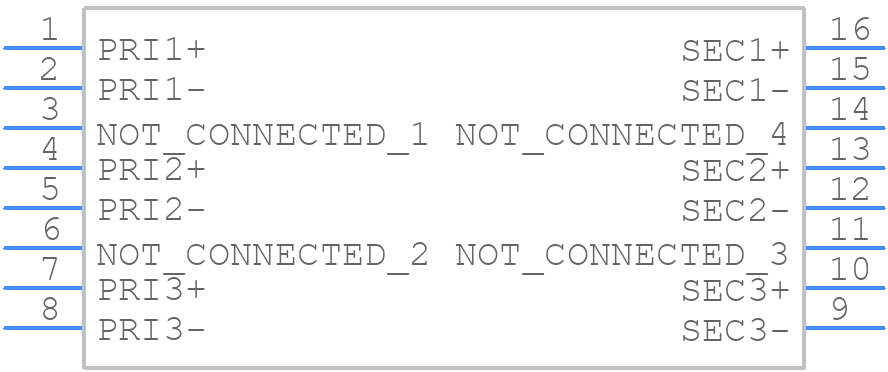

Use the download button to access the TD01-1006KRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD01-,
or try a keyword search, such as Pulse/Datacom Transformers
