MORNSUN recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a large copper area to dissipate heat. A minimum of 1 oz copper thickness is recommended.
To ensure reliable communication, use twisted pair cables, keep the bus length below 1200 meters, and use termination resistors at both ends of the bus. Also, ensure that the TD301D485H-A is properly configured for the specific application.
The maximum cable length supported by the TD301D485H-A is 1200 meters, but this can be affected by the cable quality, noise environment, and baud rate. It's recommended to perform tests to determine the maximum cable length for a specific application.
Yes, the TD301D485H-A can be used in a redundant or fault-tolerant system. However, additional circuitry and software may be required to implement the redundancy or fault-tolerance mechanism.
MORNSUN recommends using ESD protection devices, such as TVS diodes, and surge protection devices, such as varistors, to protect the TD301D485H-A from ESD and surge events. Additionally, follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TD301D485H-A Overview

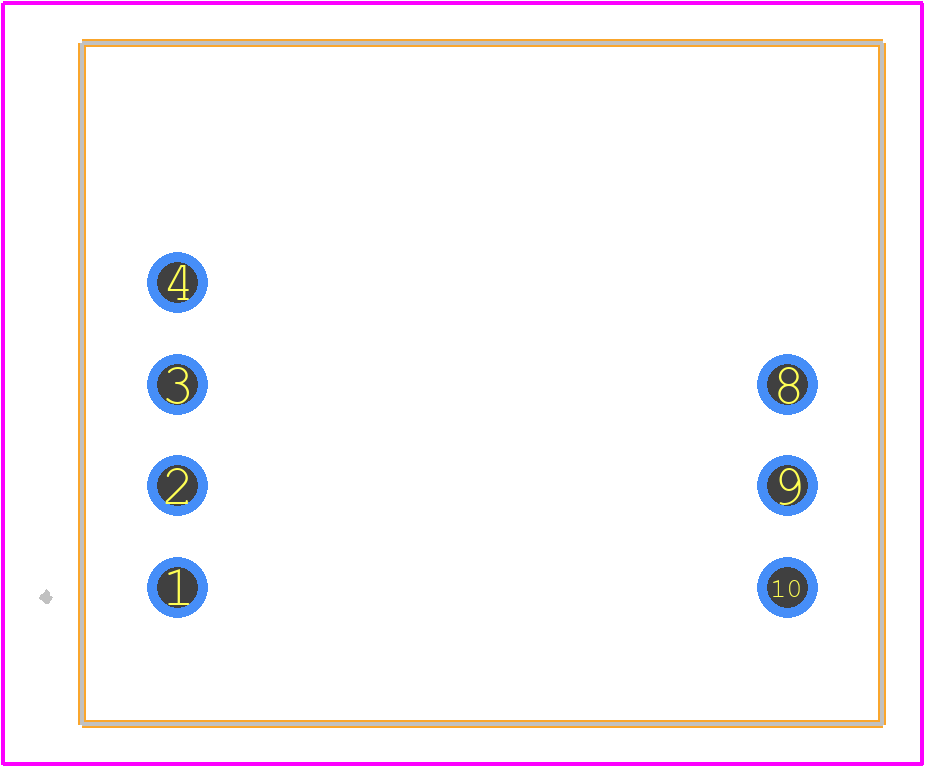

Use the download button to access the TD301D485H-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD301,
or try a keyword search, such as Line Driver or Receivers
