TD351ID - STMicroelectronics

Description: TD351ID, MOSFET Power Driver 1.7A, Inverting, 12 to 26V, 8-Pin SOIC

Download TD351ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

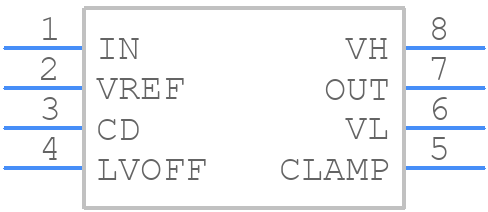

Symbol
TD351ID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TD351ID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-1-1
click to zoom
3D Models
TD351ID - STMicroelectronics - 3D model - Small Outline Packages - SO-8-1-1
click to zoom

TD351ID Details

  • Manufacturer Part Number:

    TD351ID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Built-in Protections:

    OVER CURRENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    1.7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    26 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    2.2 µs

  • Width:

    3.9 mm

TD351ID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. The X7R or X5R dielectric type is recommended for its stability and low ESR.
  • The maximum allowed voltage drop across the TD351ID is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may lead to reduced efficiency, increased heat generation, or even device failure.
  • To ensure the TD351ID operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure to stay within the recommended operating conditions, and consider implementing thermal monitoring and overcurrent protection to prevent damage or failure.
  • A combination of thermal design techniques is recommended, including a heat sink with a thermal interface material, thermal vias on the PCB, and a well-designed thermal conduction path. The goal is to keep the junction temperature below 150°C to ensure reliable operation and long-term reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TD351ID Overview

Use the download button to access the TD351ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD351, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
