TD351IN - STMicroelectronics

Description: High-Side Gate Driver IC Non-Inverting SO-8

Download TD351IN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

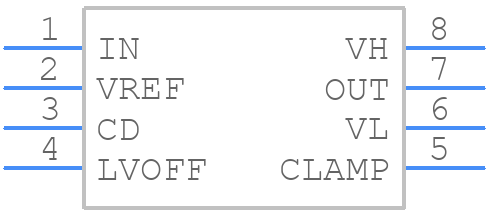

TD351IN - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TD351IN - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 (Thickness 1.75mm)
click to zoom
3D Models
TD351IN - STMicroelectronics - 3D model - Small Outline Packages - SO-8 (Thickness 1.75mm)
click to zoom

TD351IN Details

  • Manufacturer Part Number:

    TD351IN

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    1.7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.8 mm

  • Supply Voltage-Max:

    26 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    2.2 µs

  • Width:

    7.62 mm

TD351IN Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4392, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
  • The maximum allowed current can be calculated using the formula: I_max = (T_j_max - T_a) / (R_th_j-a * R_th_a), where T_j_max is the maximum junction temperature, T_a is the ambient temperature, R_th_j-a is the junction-to-ambient thermal resistance, and R_th_a is the ambient thermal resistance. Refer to the datasheet for the specific values.
  • The EN pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to control the device's operation in specific applications.
  • To ensure EMC, follow the guidelines in the application note AN2679, which provides recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with EMC standards.
  • The recommended operating conditions for the TD351IN include an input voltage range of 4.5V to 18V, an output voltage range of 1.2V to 15V, and an operating temperature range of -40°C to 150°C. Refer to the datasheet for specific details.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TD351IN Overview

Use the download button to access the TD351IN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TD351, or try a keyword search, such as MOSFET Drivers
