TDA0161FP - STMicroelectronics

Description: IC PROXIMITY DETECTOR 8 SOIC

Download TDA0161FP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

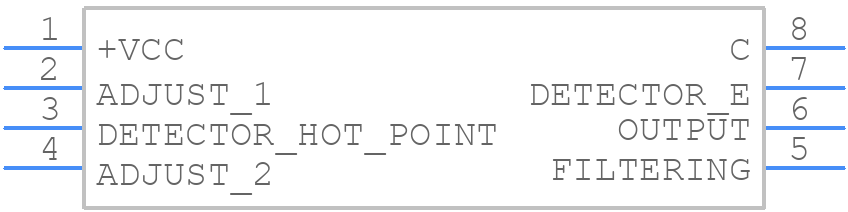

Symbol
TDA0161FP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA0161FP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-08-2020-
click to zoom
3D Models
TDA0161FP - STMicroelectronics - 3D model - Small Outline Packages - SO-08-2020-
click to zoom

TDA0161FP Details

  • Manufacturer Part Number:

    TDA0161FP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    S0-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Measurement Range-Max (mm):

    10 mm

  • Measurement Range-Min (mm):

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    12 mA

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    10mA

  • Output Type:

    ANALOG CURRENT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,EDDY CURRENT

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TDA0161FP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TDA0161FP is 4.5V to 5.5V.
  • To ensure proper power-on, apply a stable voltage supply to the VCC pin, and make sure the voltage ramp-up time is less than 1ms.
  • The TDA0161FP can handle a maximum current of 1.5A per channel.
  • To configure the TDA0161FP for half-bridge operation, connect the HBEN pin to VCC. For full-bridge operation, connect the HBEN pin to GND.
  • The dead-time generator in the TDA0161FP ensures that the high-side and low-side switches are not turned on simultaneously, preventing shoot-through currents.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA0161FP Overview

Use the download button to access the TDA0161FP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA01, or try a keyword search, such as Proximity Sensors
