Part Image

TDA1013B/N2,112 - NXP

Description: IC AMP CLASS AB MONO 4.2W 9SIL

Download TDA1013B/N2,112 Model

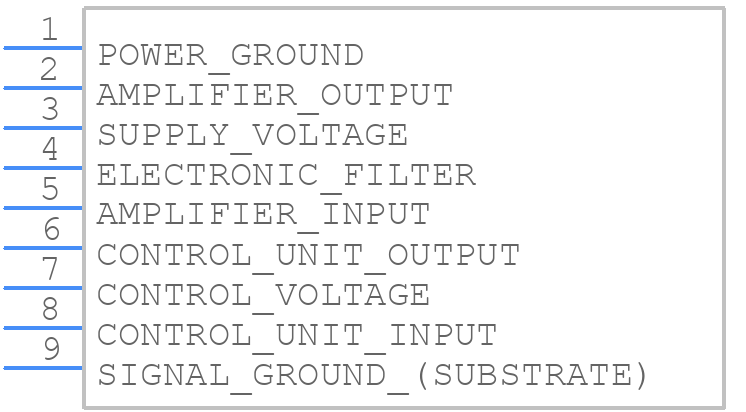

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDA1013B/N2,112 - NXP PCB footprint - Other - Other - TDA1013B/N2,112-2
click to zoom
3D Models
TDA1013B/N2,112 - NXP  - 3D model - Other - TDA1013B/N2,112-2
click to zoom

TDA1013B/N2,112 Details

  • Manufacturer Part Number:

    TDA1013B/N2,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Package Description:

    PLASTIC, SOT-110B, SIP-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PSFM-T9

  • JESD-609 Code:

    e3

  • Number of Terminals:

    9

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

TDA1013B/N2,112 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components.
  • To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering or shielding on input/output lines. Also, follow the recommended PCB layout and grounding scheme.
  • Exceeding the maximum Tj rating can lead to reduced lifespan, decreased performance, and even permanent damage to the device. Ensure proper thermal management and heat dissipation to stay within the recommended operating temperature range.
  • Yes, the TDA1013B/N2,112 is suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions, and consider additional testing and validation for specific industry requirements.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, checking the PCB layout and component placement, and verifying the power supply and input/output connections. Use oscilloscopes or logic analyzers to debug the issue, and consult NXP Semiconductors' support resources or a qualified engineer if needed.
