TDA1516BQ/N2,112 - NXP

Description: 24 W BTL or 2 x 12 watt stereo car radio power amplifier

Download TDA1516BQ/N2,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

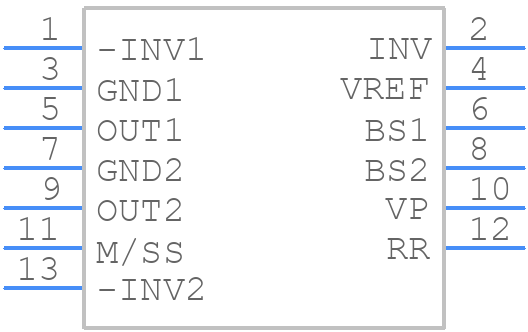

Symbol
TDA1516BQ/N2,112 - NXP - PCB symbol
click to zoom

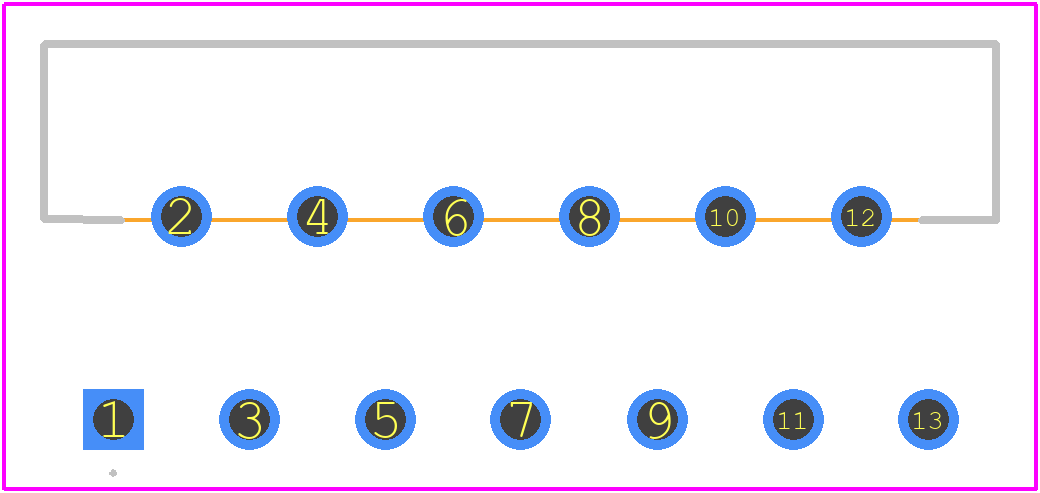

PCB Footprints
TDA1516BQ/N2,112 - NXP PCB footprint - Other - Other - TDA1516BQ/N2,112-3
click to zoom
3D Models
TDA1516BQ/N2,112 - NXP - 3D model - Other - TDA1516BQ/N2,112-3
click to zoom

TDA1516BQ/N2,112 Details

  • Manufacturer Part Number:

    TDA1516BQ/N2,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZIP

  • Package Description:

    POWER, PLASTIC, SOT-141, SIL-BENT-DIL, 13 PIN

  • Pin Count:

    13

  • Manufacturer Package Code:

    SOT141-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PZIP-T13

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    12 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    SIP13,.2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    17 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.4 mm

TDA1516BQ/N2,112 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the TDA1516BQ/N2,112 near a thermal pad or a heat sink, and ensuring good airflow around the device. The PCB should also have a solid ground plane to help dissipate heat.
  • To ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
  • The recommended input and output coupling capacitor value is typically in the range of 1uF to 10uF, depending on the specific application and frequency range.
  • Use a voltage regulator or a voltage limiter to prevent overvoltage, and add a current limiter or a fuse to prevent overcurrent. Also, ensure that the device is operated within its recommended operating conditions.
  • The recommended operating temperature range for the TDA1516BQ/N2,112 is -40°C to +125°C, but it's essential to check the specific datasheet for the exact temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA1516BQ/N2,112 Overview

Use the download button to access the TDA1516BQ/N2,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA15, or try a keyword search, such as Audio/Video Amplifiers
