A good PCB layout for the TDA1517P/N3,112 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-frequency signals near the device to minimize electromagnetic interference.
To ensure stable operation with a single power supply, decouple the power supply lines with capacitors (e.g., 10uF and 100nF) and use a voltage regulator (e.g., 78L05) to regulate the voltage. Additionally, ensure the power supply can provide the required current.
The recommended input and output coupling capacitor value is typically in the range of 1uF to 10uF, depending on the specific application and frequency range. A higher value can help with low-frequency response, but may affect high-frequency response.
To minimize distortion and noise, use a low-noise, low-impedance power supply, and ensure the audio signal path is well-shielded and away from high-frequency signals. Use a high-quality, low-ESR capacitor for decoupling, and consider adding a noise filter or a common-mode choke to the audio signal path.
The maximum allowed ambient temperature for reliable operation of the TDA1517P/N3,112 is 70°C. However, it's recommended to keep the ambient temperature below 60°C to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TDA1517P/N3,112 Overview

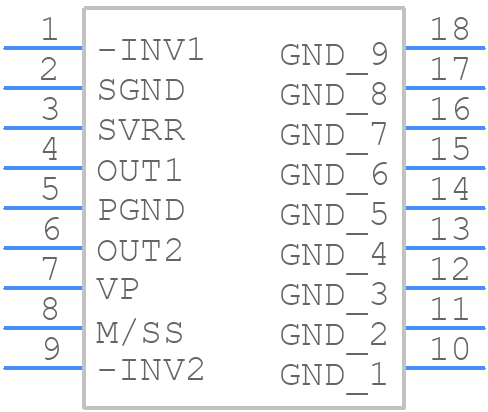

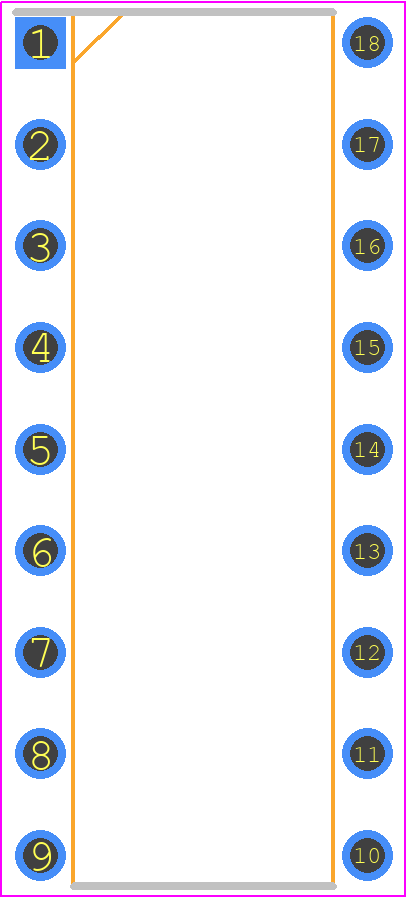

Use the download button to access the TDA1517P/N3,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA15,
or try a keyword search, such as Audio/Video Amplifiers
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
