TDA1517P/N3 - NXP

Description: NXP - TDA1517P/N3 - Audio Power Amplifier, 12 W, B, 2 Channel, 6V to 18V, DIP, 18 Pins

Download TDA1517P/N3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

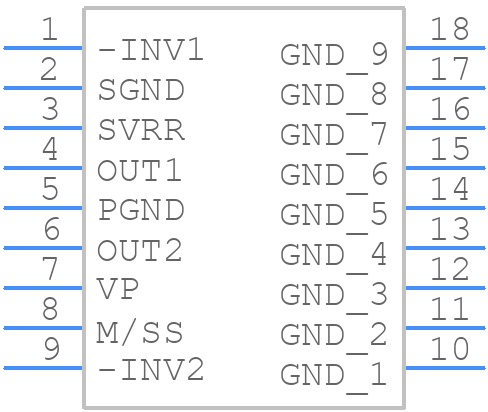

Symbol
TDA1517P/N3 - NXP - PCB symbol
click to zoom

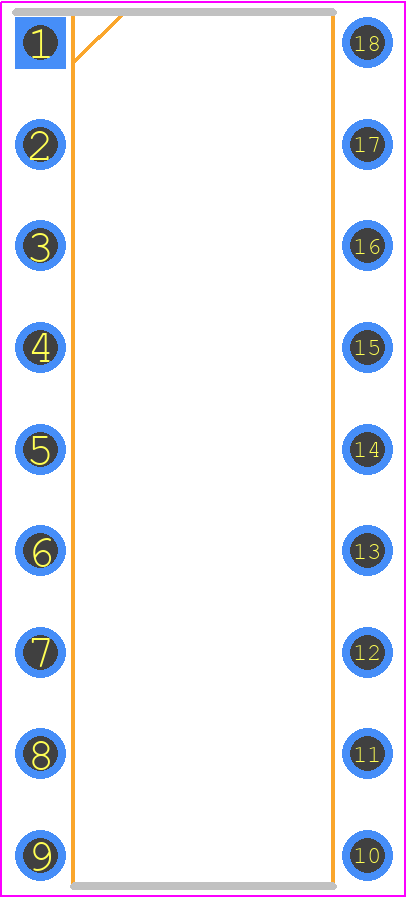

PCB Footprints
TDA1517P/N3 - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT398-1
click to zoom
3D Models
TDA1517P/N3 - NXP - 3D model - Dual-In-Line Packages - SOT398-1
click to zoom

TDA1517P/N3 Details

  • Manufacturer Part Number:

    TDA1517P/N3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-44

  • Pin Count:

    44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    6 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    10 mm

TDA1517P/N3 Frequently Asked Questions (FAQs)

  • A 10uF capacitor in parallel with a 100nF capacitor between the power supply pins (VCC and GND) is recommended for proper decoupling and noise reduction.
  • Ensure the output current does not exceed 2.5A, and the output voltage does not exceed 25V. Also, keep the junction temperature below 150°C and the power dissipation below 15W.
  • Keep the power supply traces as short as possible, use a ground plane, and place the decoupling capacitors close to the IC. Also, avoid running signal traces near the power supply traces.
  • Yes, the TDA1517P/N3 can be used in a bridged amplifier configuration, but it requires an external circuit to invert the input signal for the second amplifier. This can be done using an op-amp or a dedicated inverting amplifier IC.
  • Use an external current limiting resistor or a fuse in series with the output to limit the current in case of a short-circuit. Additionally, consider using a thermal shutdown circuit to protect the IC from overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA1517P/N3 Overview

Use the download button to access the TDA1517P/N3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA15, or try a keyword search, such as Audio/Video Amplifiers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
