TDA1521Q - NXP

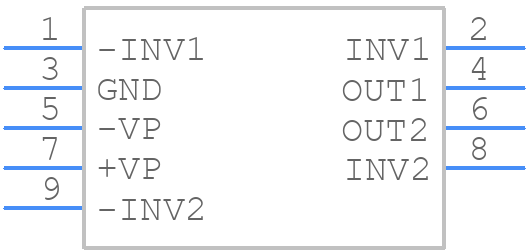

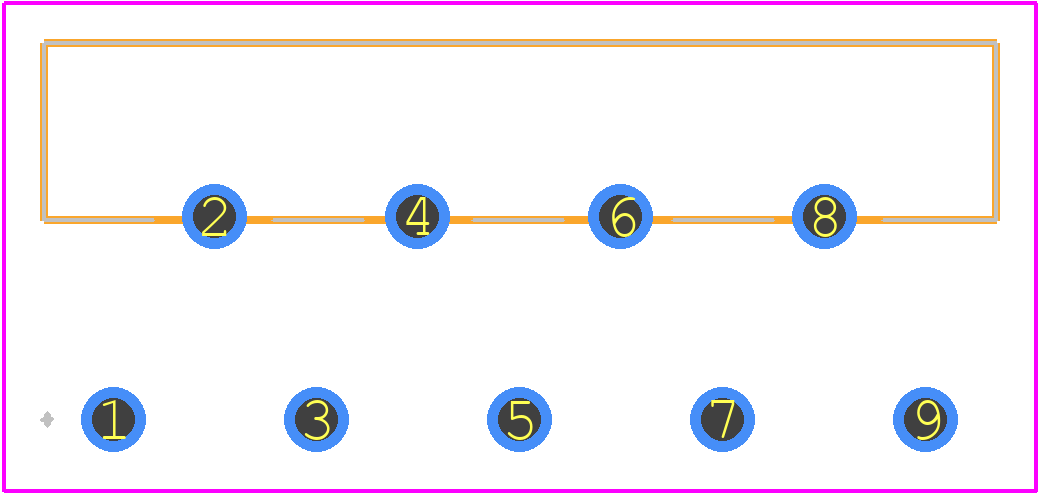

TDA1521Q Details

• Manufacturer Part Number:

  TDA1521Q

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  ZIP

• Package Description:

  POWER, PLASTIC, SOT-157, SIL-BENT-DIL, 9 PIN

• Pin Count:

  9

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Bandwidth-Nom:

  20 kHz

• Consumer IC Type:

  AUDIO AMPLIFIER

• Gain:

  30 dB

• Harmonic Distortion:

  0.5%

• JESD-30 Code:

  R-PZIP-T9

• Length:

  24 mm

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -25 °C

• Output Power-Nom:

  12 W

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP9,.2,.2,100

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  17 mm

• Supply Current-Max:

  70 mA

• Supply Voltage-Max (Vsup):

  21 V

• Supply Voltage-Min (Vsup):

  7.5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  ZIG-ZAG

• Width:

  4.4 mm
