TDA1554Q footprint, schematic symbol and 3D model by NXP

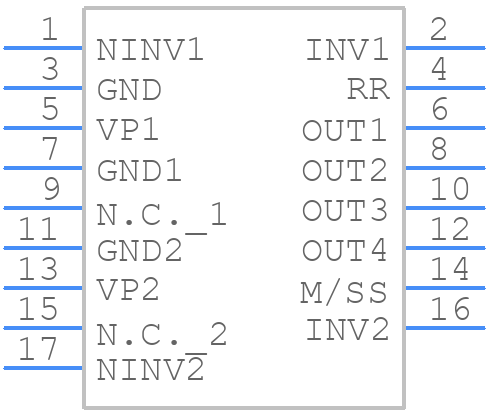

Symbol

click to zoom

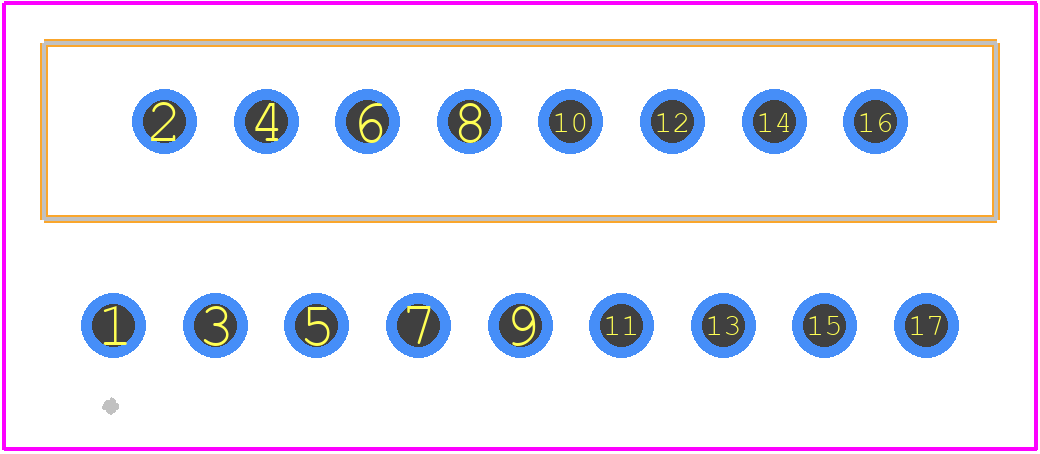

PCB Footprints

TDA1554Q - NXP PCB footprint - Other - Other - TDA1554Q-2

click to zoom

3D Models

TDA1554Q - NXP - 3D model - Other - TDA1554Q-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA1554Q
Part Number TDA1554Q
Manufacturer NXP
Pin Count 17
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TDA1554Q-2
Released Date Apr 21, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA1554Q Details

Manufacturer Part Number:
TDA1554Q
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
ZIP
Package Description:
POWER, PLASTIC, SOT-243-1, DIL-BENT-SIL, 17 PIN
Pin Count:
17
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
NXP Semiconductors
YTEOL:
0
Bandwidth-Nom:
20 kHz
Consumer IC Type:
AUDIO AMPLIFIER
Gain:
26 dB
Harmonic Distortion:
10%
JESD-30 Code:
R-PZIP-T17
JESD-609 Code:
e3
Length:
23.8 mm
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
17
Output Power-Nom:
22 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
ZIP
Package Equivalence Code:
ZIP17,.2,.17
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
17 mm
Supply Current-Max:
160 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
6 V
Surface Mount:
NO
Technology:
BIPOLAR
Terminal Finish:
MATTE TIN
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
1.27 mm
Terminal Position:
ZIG-ZAG
Width:
4.4 mm

TDA1554Q Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TDA1554Q is 8V to 15V, with a typical voltage of 12V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. Also, ensure the input signal is within the recommended range of 100mV to 1V peak-to-peak.
The TDA1554Q can handle a maximum power of 20W, with a maximum current of 1.5A. However, it's recommended to operate within the safe operating area (SOA) to ensure reliability and prevent overheating.
To prevent overheating, ensure good heat dissipation by mounting the device on a heat sink or a metal plate. Also, operate the device within the recommended temperature range of -40°C to 150°C, and avoid exceeding the maximum junction temperature of 150°C.
For optimal performance, use a multi-layer PCB with a solid ground plane, and keep the input and output tracks as short as possible. Also, use a common ground point for the power supply and the amplifier inputs to minimize noise and hum.
