TDA1558Q - NXP

Description: Audio Amplifier, Class-B Stereo, 17-Pin DBS P, DBS-17P

Download TDA1558Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

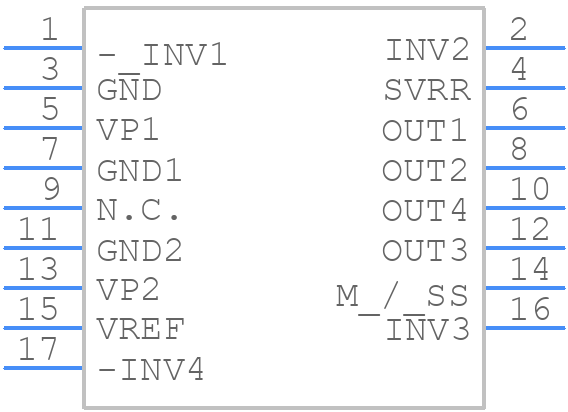

TDA1558Q - NXP - PCB symbol
click to zoom
PCB Footprints

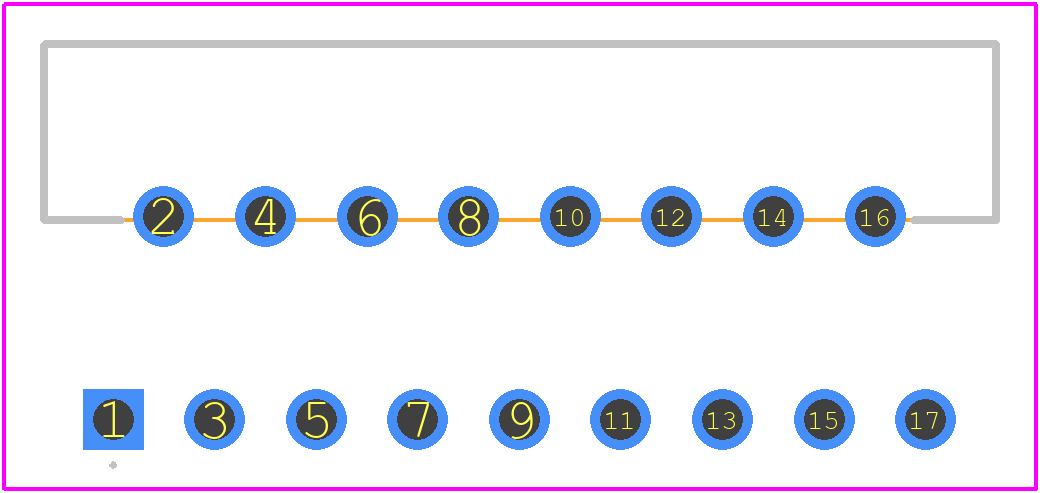

TDA1558Q - NXP PCB footprint - Other - Other - TDA1558Q-6
click to zoom
3D Models
TDA1558Q - NXP - 3D model - Other - TDA1558Q-6
click to zoom

TDA1558Q Details

  • Manufacturer Part Number:

    TDA1558Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZIP

  • Package Description:

    POWER, PLASTIC, SOT-243-1, DIL-BENT-SIL, 17 PIN

  • Pin Count:

    17

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    46 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T17

  • Length:

    23.8 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Output Power-Nom:

    22 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP17,.2,.17

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    17 mm

  • Supply Current-Max:

    160 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

TDA1558Q Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TDA1558Q is to keep the input and output tracks as short as possible, and to use a ground plane to minimize electromagnetic interference (EMI). Additionally, it is recommended to place decoupling capacitors close to the device to reduce noise and improve stability.
  • To ensure the TDA1558Q operates within its recommended operating conditions, it is essential to provide a stable power supply voltage within the specified range (typically 12V to 15V), maintain a proper thermal management system to keep the device temperature within the specified range (typically -40°C to 125°C), and avoid exceeding the maximum ratings for input and output currents.
  • The maximum power dissipation of the TDA1558Q depends on the operating conditions and the package type. For the SO24 package, the maximum power dissipation is typically around 2.5W. However, this value can be derated based on the ambient temperature and the thermal resistance of the package. It is recommended to consult the datasheet and application notes for more detailed information.
  • To troubleshoot issues with the TDA1558Q, start by verifying the power supply voltage and ensuring it is within the specified range. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify the input and output waveforms, and check for any signs of distortion or oscillation. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
  • Yes, the TDA1558Q is suitable for use in high-reliability and automotive applications. NXP Semiconductors provides a range of automotive-grade and high-reliability versions of the device, which are designed to meet the specific requirements of these applications. These versions typically have enhanced specifications for parameters such as temperature range, voltage tolerance, and reliability.
