TDA1565TH - NXP

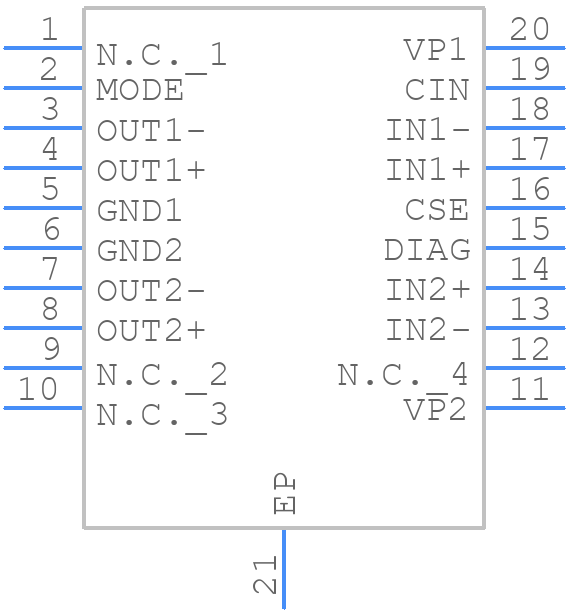

TDA1565TH Details

• Manufacturer Part Number:

  TDA1565TH

• Source Url Status Check Date:

  2013-06-14 00:00:00

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

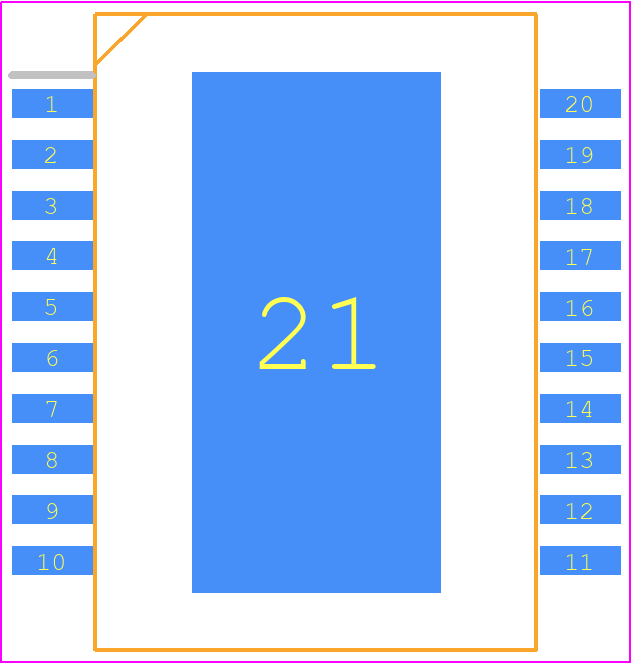

• Package Description:

  PLASTIC, SOT-418-3, HSOP-20

• Pin Count:

  20

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Bandwidth-Nom:

  15 kHz

• Consumer IC Type:

  AUDIO AMPLIFIER

• Gain:

  26 dB

• Harmonic Distortion:

  10%

• JESD-30 Code:

  R-PDSO-G20

• Length:

  15.9 mm

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Power-Nom:

  40 W

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP20,.56

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.5 mm

• Supply Current-Max:

  150 mA

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  6 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  11 mm
