TDA2003AV footprint, schematic symbol and 3D model by STMicroelectronics

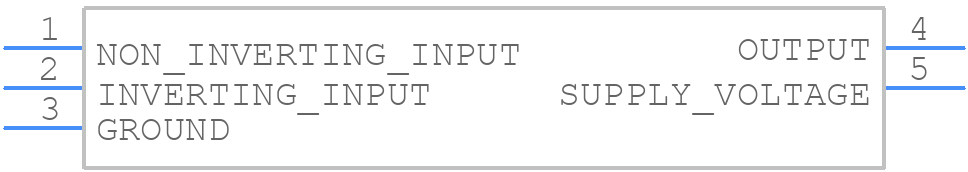

Symbol

click to zoom

PCB Footprints

TDA2003AV - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Pentawatt V-1

click to zoom

3D Models

TDA2003AV - STMicroelectronics - 3D model - Transistor Outline, Vertical - Pentawatt V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA2003AV
Part Number TDA2003AV
Manufacturer STMicroelectronics
Pin Count 5
Part Category Integrated Circuit
Package Category Transistor Outline, Vertical
Footprint Name Transistor Outline, Vertical - Pentawatt V-1
Released Date Nov 17, 2020
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA2003AV Details

Manufacturer Part Number:
TDA2003AV
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PENTAWATT-5
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
STMicroelectronics
YTEOL:
0
Bandwidth-Nom:
15 kHz
Consumer IC Type:
AUDIO AMPLIFIER
Gain:
40 dB
JESD-30 Code:
R-XZIP-T5
JESD-609 Code:
e3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
5
Output Power-Nom:
12 W
Package Body Material:
UNSPECIFIED
Package Code:
ZIP
Package Equivalence Code:
ZIP5,.15,.17,67TB
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
8 V
Surface Mount:
NO
Technology:
BIPOLAR
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
1.7 mm
Terminal Position:
ZIG-ZAG

TDA2003AV Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TDA2003AV is 12V to 18V, with a typical voltage of 15V.
To ensure proper biasing, connect a 1kΩ resistor between the VCC pin and the GND pin, and a 2.2μF capacitor between the VCC pin and the GND pin. This will provide a stable voltage supply and decouple the power supply noise.
The TDA2003AV can handle a maximum power of 20W per channel, with a maximum current of 2A per channel.
To protect the TDA2003AV from overheating, ensure good heat dissipation by using a heat sink with a thermal resistance of less than 10°C/W, and keep the ambient temperature below 70°C.
To minimize electromagnetic interference (EMI) and ensure optimal performance, use a symmetrical PCB layout with a ground plane, and keep the input and output traces as short as possible.

Trust Checks

Expert Contribution

System Verified

Community Approved

TDA2003AV Overview

Use the download button to access the TDA2003AV schematic symbol, PCB footprint, and 3D model.
