- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA2003V
- Part Number TDA2003V
- Manufacturer STMicroelectronics
- Pin Count 5
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TDA2003V-2
- Released Date Jul 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2003V Details
-
Manufacturer Part Number:
TDA2003V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZFM
-
Package Description:
PENTAWATT-5
-
Pin Count:
5
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA2003V Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA2003V involves keeping the input and output traces as short as possible, using a ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated ground plane is recommended.
-
Choose input capacitors with a high ripple current rating and low ESR. For output capacitors, select ones with a high capacitance value and low ESR. The recommended values are 10uF for input capacitors and 22uF for output capacitors.
-
The maximum power dissipation of the TDA2003V is 2.5W. However, this value can be increased by using a heat sink or a thermal pad to improve heat dissipation.
-
Use a voltage regulator or a voltage supervisor to protect the TDA2003V from overvoltage and undervoltage conditions. You can also add a TVS diode or a zener diode to protect the IC from voltage spikes.
-
The recommended operating temperature range for the TDA2003V is -40°C to 150°C. However, the IC can operate up to 175°C for short periods of time.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA2003V Overview

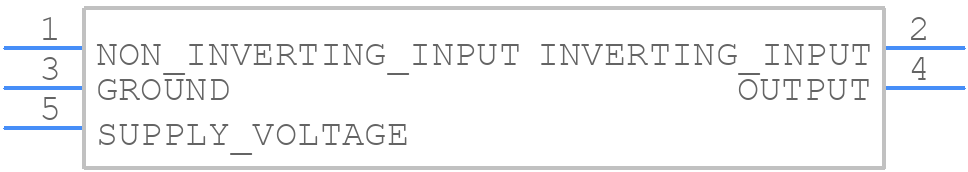

Use the download button to access the TDA2003V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20,
or try a keyword search, such as Audio/Video Amplifiers
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
