TDA2005R - STMicroelectronics

Description: STMICROELECTRONICS - TDA2005R - AMPLIFIER, CLASS B, 20W, MULTIWATT11

Download TDA2005R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

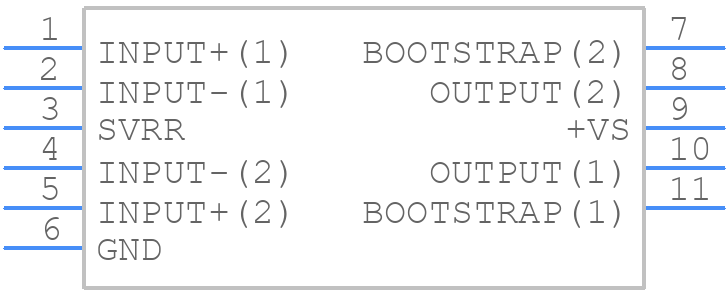

Symbol
TDA2005R - STMicroelectronics - PCB symbol
click to zoom

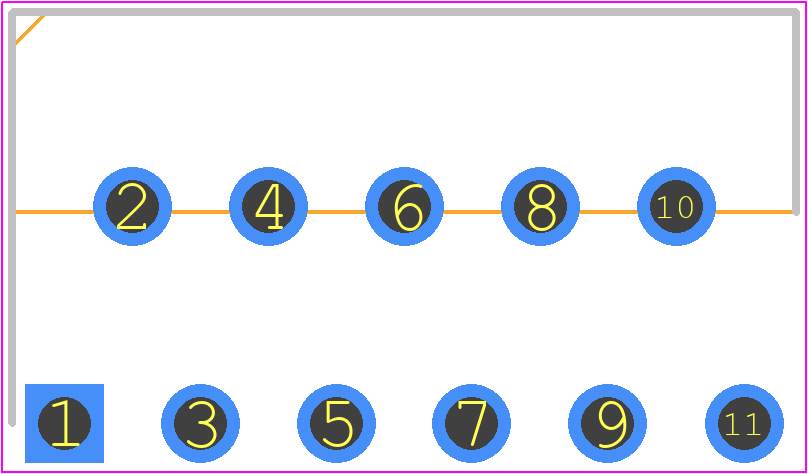

PCB Footprints
TDA2005R - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt11 V
click to zoom
3D Models
TDA2005R - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt11 V
click to zoom

TDA2005R Details

  • Manufacturer Part Number:

    TDA2005R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, MULTIWATT-11

  • Pin Count:

    11

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    50 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZIP-T11

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Output Power-Nom:

    22 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    150 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA2005R Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TDA2005R is 12V to 18V, with a typical voltage of 15V.
  • To ensure proper biasing, connect a 1kΩ resistor between the VCC pin and the GND pin, and a 2.2μF capacitor between the VCC pin and the GND pin. This will provide a stable voltage supply and decouple the power supply noise.
  • The TDA2005R can handle a maximum power of 20W per channel, with a maximum current of 2A per channel.
  • To protect the TDA2005R from overheating, ensure good heat dissipation by mounting the device on a heat sink or a metal plate, and provide adequate airflow around the device. Also, avoid operating the device at maximum power for extended periods.
  • Yes, the TDA2005R can be used in a bridged configuration to increase the power output. However, ensure that the device is properly biased and heat-sinked to handle the increased power.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA2005R Overview

Use the download button to access the TDA2005R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20, or try a keyword search, such as Audio/Video Amplifiers
