- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA2005S
- Part Number TDA2005S
- Manufacturer STMicroelectronics
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical

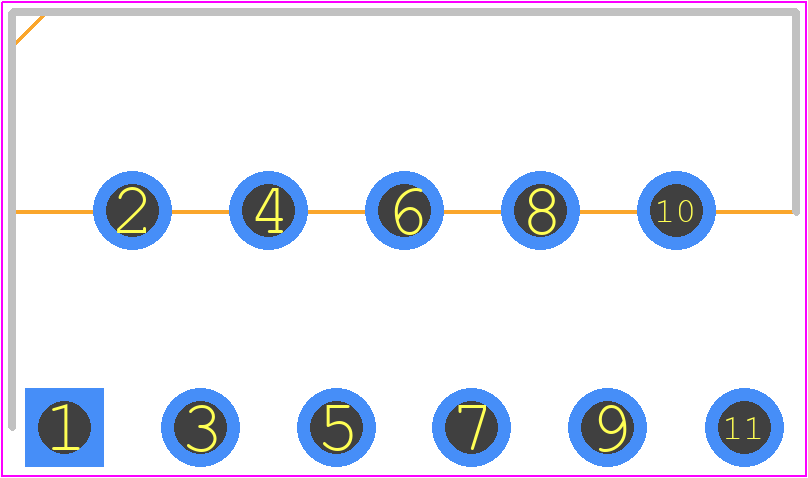

- Footprint Name Transistor Outline, Vertical - Multiwatt11 V_1
- Released Date Jun 25, 2020
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2005S Details
-
Manufacturer Part Number:
TDA2005S
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZFM
-
Package Description:
MULTIWATT-11
-
Pin Count:
11
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA2005S Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TDA2005S is 12V to 18V, with a typical voltage of 15V.
-
To ensure the TDA2005S operates within its SOA, ensure that the output current does not exceed 2.5A, and the junction temperature does not exceed 150°C. Also, ensure that the device is properly heatsinked and the thermal resistance (RthJA) is minimized.
-
The bootstrap capacitor (Cb) is used to generate the high-side gate drive voltage for the internal power MOSFET. It is recommended to use a capacitor with a value between 10nF to 100nF.
-
The input capacitor (Ci) should be chosen based on the input voltage ripple and the desired output voltage ripple. A general rule of thumb is to choose a capacitor with a value between 10uF to 100uF, with a voltage rating of at least 25V.
-
The internal overcurrent protection (OCP) in the TDA2005S is designed to protect the device from excessive current conditions. If the output current exceeds 2.5A, the OCP will limit the current to prevent damage to the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA2005S Overview

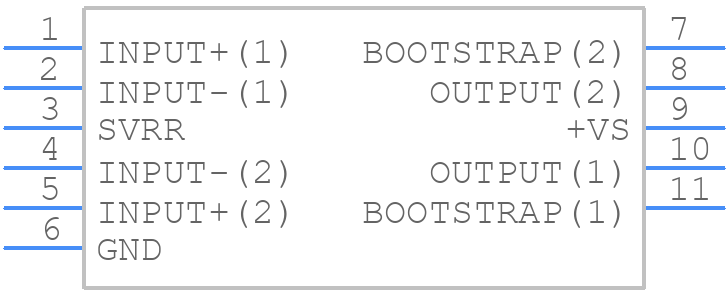

Use the download button to access the TDA2005S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20,
or try a keyword search, such as Audio/Video Amplifiers
