- Part Number TDA2006V
- Manufacturer STMicroelectronics
- Pin Count 5
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - Pentawatt V-ren1
- Released Date Jan 12, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2006V Details
-
Manufacturer Part Number:
TDA2006V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Bandwidth-Nom:
100 kHz
-
Consumer IC Type:
AUDIO AMPLIFIER
-
Gain:
30 dB
TDA2006V Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TDA2006V is 12V to 18V, with a typical voltage of 15V.
-
To ensure proper biasing, connect a 1kΩ resistor between the VCC pin and the GND pin, and a 2.2μF capacitor between the VCC pin and the GND pin. This will provide a stable voltage supply and decouple the power supply noise.
-
The TDA2006V can handle a maximum power of 20W per channel, with a maximum current of 2A per channel.
-
To configure the TDA2006V for BTL operation, connect the output of one amplifier to the input of the other amplifier, and connect the load between the outputs of the two amplifiers. This will provide a higher power output and improved efficiency.
-
The bootstrap capacitor is used to generate a voltage that is higher than the supply voltage, which is required for the output stage of the amplifier. This allows the amplifier to deliver a higher output voltage swing and improve the overall performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA2006V Overview

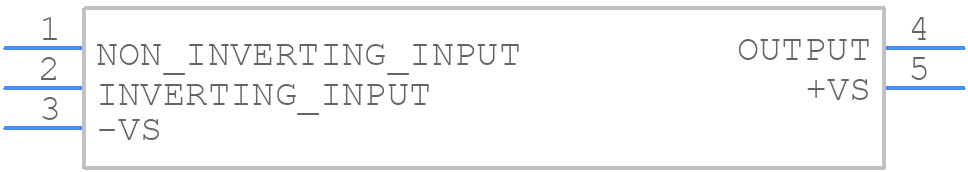

Use the download button to access the TDA2006V schematic symbol, PCB footprint, and 3D model.
