TDA2020AD2 - STMicroelectronics

Description: TDA 2020 AD2 quad in-line plastic package with spacer 20W Hi-FI AUDIO AMPLIFIER-40 to 150°C,3.5A,+22V

Download TDA2020AD2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

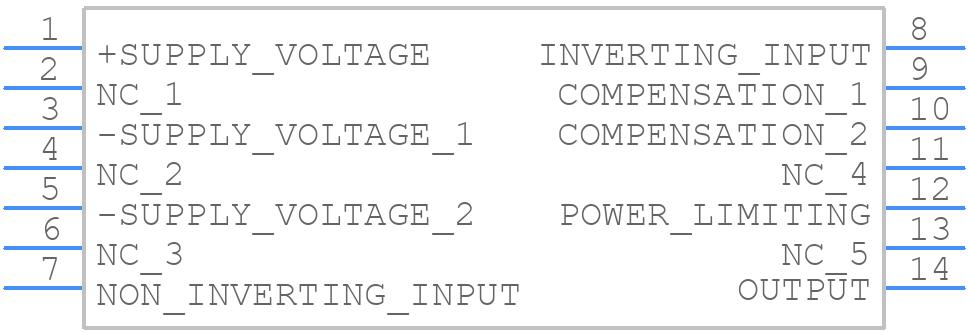

TDA2020AD2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

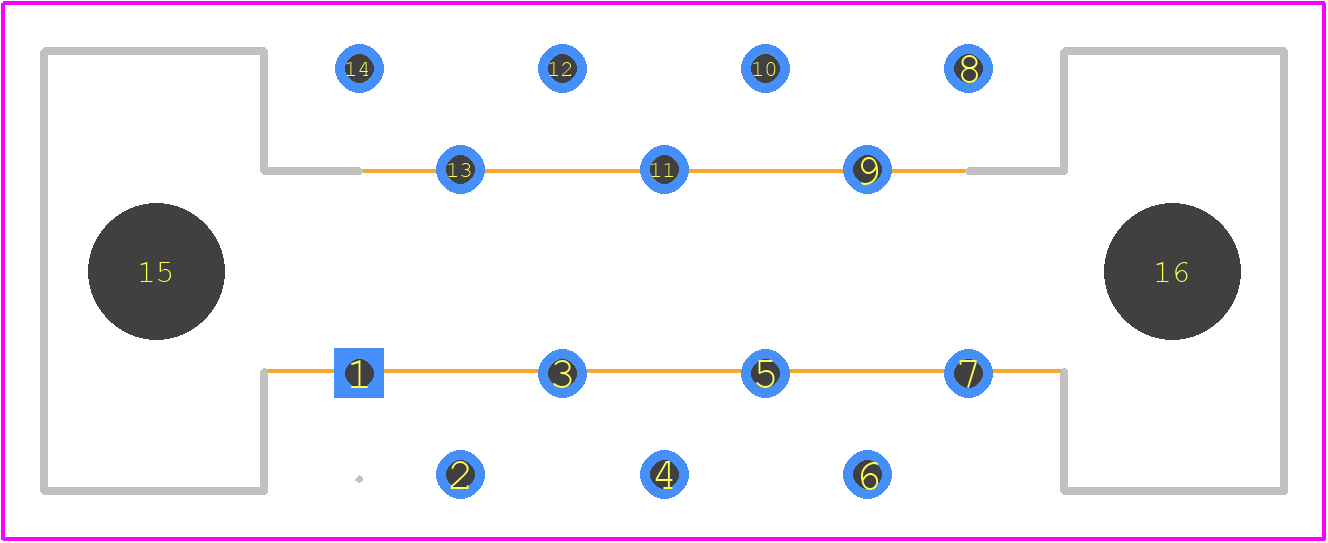

TDA2020AD2 - STMicroelectronics PCB footprint - Other - Other - 14-Lead Quad In-Line DIP
click to zoom
3D Models
TDA2020AD2 - STMicroelectronics - 3D model - Other - 14-Lead Quad In-Line DIP
click to zoom

TDA2020AD2 Details

  • Manufacturer Part Number:

    TDA2020AD2

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QIP

  • Package Equivalence Code:

    QUIP,14PIN,SPACER

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Position:

    QUAD

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA2020AD2 Overview

Use the download button to access the TDA2020AD2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics
