- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA2030AV
- Part Number TDA2030AV
- Manufacturer STMicroelectronics
- Pin Count 5
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - Pentawatt V-ren1
- Released Date Apr 10, 2021
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2030AV Details
-
Manufacturer Part Number:
TDA2030AV
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZFM
-
Package Description:
PENTAWATT-5
-
Pin Count:
5
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA2030AV Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the TDA2030AV is 20W, but it can be increased to 30W with proper heat sinking.
-
The gain resistor (Rg) should be chosen based on the desired gain and input impedance. A higher Rg value will result in higher gain, but may also increase noise and distortion. A good starting point is Rg = 2.2 kΩ for a gain of 20 dB.
-
The recommended operating voltage range for the TDA2030AV is ±12V to ±18V, but it can operate with a single supply voltage of 24V to 36V.
-
To prevent oscillations and instability, ensure that the circuit layout is well-designed, with short leads and minimal parasitic capacitance. Also, use a decoupling capacitor (e.g., 100 nF) between the supply pins and ground.
-
The maximum input signal amplitude that the TDA2030AV can handle is ±10V peak-to-peak, but this may vary depending on the gain setting and output load.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA2030AV Overview

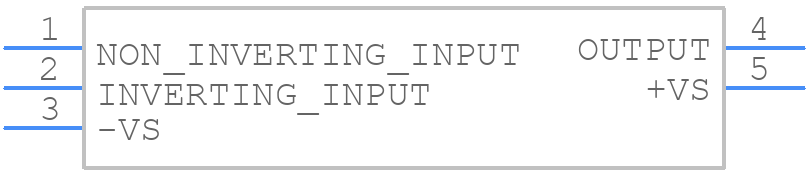

Use the download button to access the TDA2030AV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20,
or try a keyword search, such as Audio/Video Amplifiers
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
