- Part Number TDA2050V
- Manufacturer STMicroelectronics
- Pin Count 5
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - Pentawatt V-ren1
- Released Date Nov 17, 2020
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2050V Details
-
Manufacturer Part Number:
TDA2050V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZFM
-
Package Description:
PENTAWATT-5
-
Pin Count:
5
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA2050V Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the TDA2050V is 20W, but it can be increased to 30W with proper heat sinking.
-
The gain setting depends on the input signal level and the desired output power. A higher gain setting can provide more output power, but may also increase distortion. A good starting point is to set the gain to 20dB and adjust from there based on the specific application requirements.
-
The recommended operating voltage range for the TDA2050V is 12V to 24V, with a typical voltage of 18V. Operating outside of this range may affect the amplifier's performance and reliability.
-
To protect the TDA2050V from overheating, ensure good heat sinking, use a heat sink with a thermal resistance of 2°C/W or less, and keep the ambient temperature below 40°C. Also, avoid high power operation for extended periods.
-
Yes, the TDA2050V can be used as a bridge amplifier, but it requires an external circuit to invert the input signal to one of the amplifier channels. This can provide higher output power and improved efficiency.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA2050V Overview

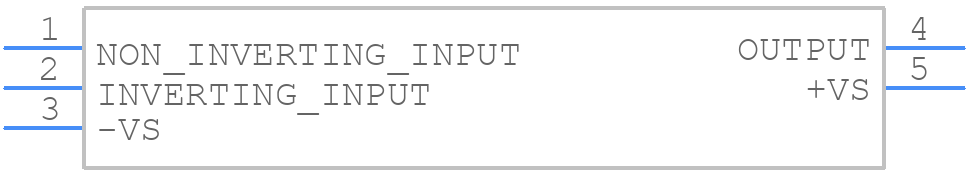

Use the download button to access the TDA2050V schematic symbol, PCB footprint, and 3D model.
