TDA2052H - STMicroelectronics

Description: Audio Amplifiers 60W Hi-Fi Audio Amp

Download TDA2052H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

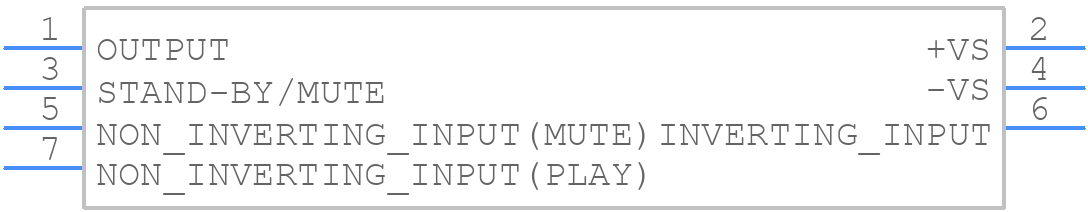

TDA2052H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

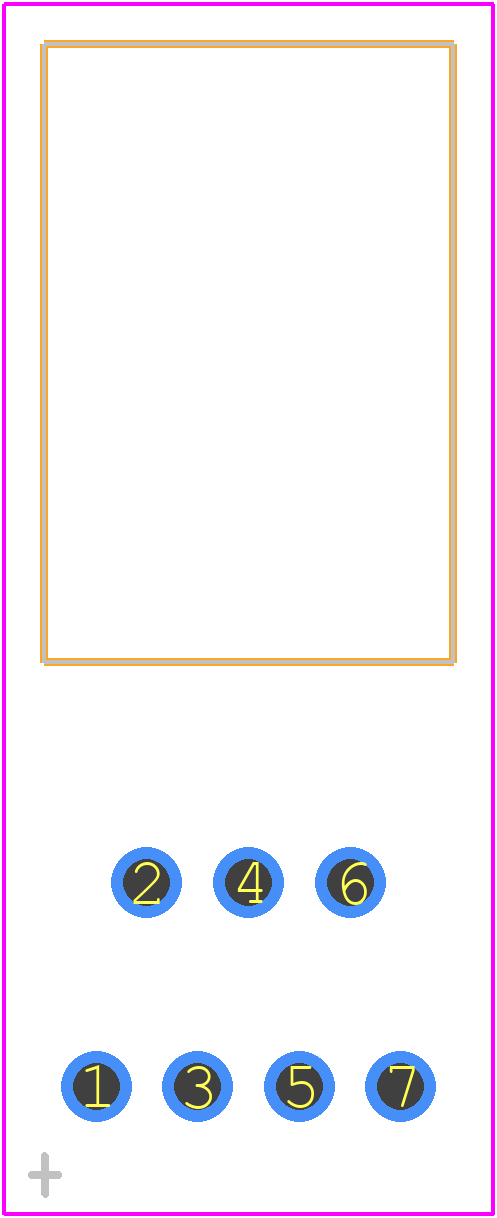

TDA2052H - STMicroelectronics PCB footprint - Other - Other - TDA2052H-4
click to zoom
3D Models
TDA2052H - STMicroelectronics - 3D model - Other - TDA2052H-4
click to zoom

TDA2052H Details

  • Manufacturer Part Number:

    TDA2052H

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    HEPTAWATTH-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T7

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    60 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP7H,.2,.7TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA2052H Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA2052H is 36V, but it's recommended to operate it between 12V to 24V for optimal performance and thermal considerations.
  • To ensure the TDA2052H operates within its SOA, ensure the output current does not exceed 3.5A, the output power does not exceed 20W, and the junction temperature does not exceed 150°C. Also, use a suitable heat sink and ensure good thermal management.
  • The recommended input capacitor value for the TDA2052H is 220nF to 470nF, depending on the input frequency and impedance. A larger capacitor value can help filter out high-frequency noise, but may affect the amplifier's stability.
  • Yes, the TDA2052H can be used as a bridge amplifier, but it requires an external circuit to invert the input signal for the second amplifier. This configuration can provide higher power output and improved efficiency.
  • To protect the TDA2052H from overvoltage and overcurrent, use a voltage regulator or a voltage limiter to prevent the supply voltage from exceeding 36V. Also, use a current limiter or a fuse to prevent excessive current draw.
