TDA2052V - STMicroelectronics

Description: STMicroelectronics TDA2052V Audio Amplifier, Class-AB Mono, 7-Pin HEPTAWATT V

Download TDA2052V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

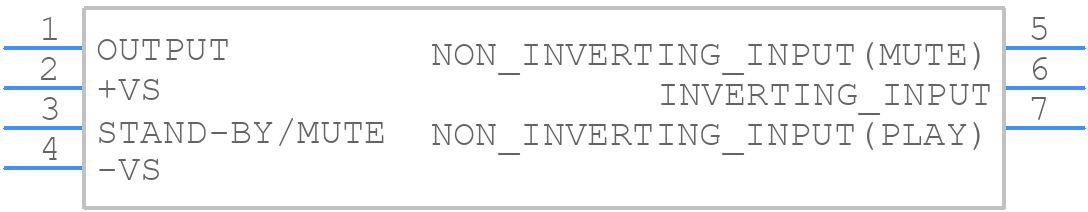

TDA2052V - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA2052V - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Heptawatt V (H=15.8)
click to zoom
3D Models
TDA2052V - STMicroelectronics - 3D model - Transistor Outline, Vertical - Heptawatt V (H=15.8)
click to zoom

TDA2052V Details

  • Manufacturer Part Number:

    TDA2052V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    HEPTAWATTV-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T7

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    60 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP7,.2,.1TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TDA2052V Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA2052V is 36V, but it's recommended to operate it between 12V to 24V for optimal performance.
  • To ensure the TDA2052V operates within its SOA, make sure to keep the output current below 3.5A, and the junction temperature below 150°C. Also, ensure the power supply voltage is within the recommended range.
  • The recommended heatsink for the TDA2052V is a thermal resistance of 10°C/W or lower. A heatsink with a thermal resistance of 5°C/W or lower is recommended for high-power applications.
  • Yes, the TDA2052V can be used as a bridge amplifier. However, it's essential to ensure that the output stages are properly biased and that the input signals are correctly phased to avoid damage to the device.
  • To protect the TDA2052V from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the power supply voltage is within the recommended range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA2052V Overview

Use the download button to access the TDA2052V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA20, or try a keyword search, such as Audio/Video Amplifiers
