- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA2320AN
- Part Number TDA2320AN
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-8 1.75mm thickness
- Released Date Jul 1, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2320AN Details
-
Manufacturer Part Number:
TDA2320AN
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Bandwidth-Nom:
22 kHz
TDA2320AN Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the TDA2320AN is to use a symmetrical layout with the IC at the center, and to keep the input and output tracks as short as possible. Additionally, it's recommended to use a ground plane and to decouple the power supply pins with capacitors.
-
The value of the input and output coupling capacitors depends on the frequency range of the signal and the impedance of the circuit. A good starting point is to use capacitors with a value of 10uF to 22uF for the input and 100nF to 220nF for the output. However, the optimal value may need to be determined through experimentation and simulation.
-
The maximum power dissipation of the TDA2320AN is 1.4W, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package. However, it's recommended to keep the power dissipation below 1W to ensure reliable operation.
-
Yes, the TDA2320AN can be used as a line driver, but it's not the most suitable application. The IC is designed as a audio amplifier and has a relatively low output current capability, which may not be sufficient for driving long cables or heavy loads. However, it can be used as a line driver for short distances and light loads.
-
To protect the TDA2320AN from ESD and overvoltage, it's recommended to use ESD protection diodes and overvoltage protection circuits at the input and output pins. Additionally, it's recommended to use a voltage regulator to regulate the power supply voltage and to add decoupling capacitors to filter out noise and transients.
Trust Checks
Community Provided
System Verified
Community Approved
TDA2320AN Overview

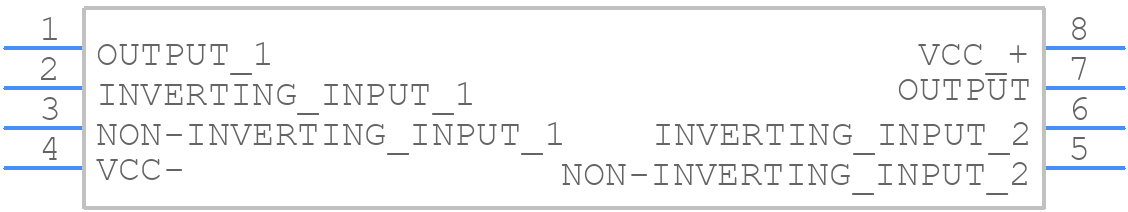

Use the download button to access the TDA2320AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA23,
or try a keyword search, such as Audio/Video Amplifiers
