TDA2822D - STMicroelectronics

Description: Quadmm TDA2822D, Audio Amplifier Class-AB mono/stereo +150°C 8-Pin SOIC

Download TDA2822D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

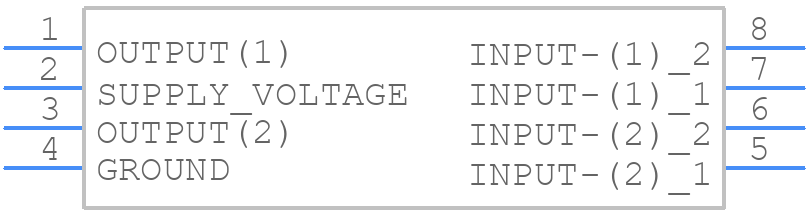

Symbol
TDA2822D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA2822D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO- 8
click to zoom
3D Models
TDA2822D - STMicroelectronics - 3D model - Small Outline Packages - SO- 8
click to zoom

TDA2822D Details

  • Manufacturer Part Number:

    TDA2822D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    39 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Output Power-Nom:

    0.38 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TDA2822D Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA2822D is 15V. Exceeding this voltage may damage the device.
  • To ensure the TDA2822D operates within its SOA, ensure the output current does not exceed 1.5A, and the junction temperature does not exceed 150°C. Also, avoid operating the device at high power supply voltages and high output currents simultaneously.
  • To minimize EMI, use a multi-layer PCB with a solid ground plane, and keep the power supply traces as short as possible. Also, place the input and output capacitors close to the device, and use a common ground point for the input and output circuits.
  • Choose input and output capacitors with a voltage rating that exceeds the power supply voltage, and a capacitance value that is at least 100nF. Also, ensure the capacitors have a low equivalent series resistance (ESR) to minimize power losses.
  • A heat sink with a thermal resistance of 10°C/W or lower is recommended. Attach the heat sink to the device using a thermally conductive adhesive or thermal tape, and ensure the heat sink is securely fastened to the PCB or chassis.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA2822D Overview

Use the download button to access the TDA2822D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA28, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
