- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA2822M
- Part Number TDA2822M
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TDA2822M MINIDIP PACKAGE MECHANICAL DATA
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA2822M Details
-
Manufacturer Part Number:
TDA2822M
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Bandwidth-Nom:
22 kHz
TDA2822M Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TDA2822M is 4.5V to 15V.
-
To ensure proper biasing, connect a 1kΩ resistor between the non-inverting input (pin 3) and the output (pin 6), and a 1kΩ resistor between the inverting input (pin 2) and the output (pin 6).
-
The maximum power dissipation of the TDA2822M is 1.4W, and it is recommended to use a heat sink to ensure reliable operation.
-
To reduce noise and hum, use a decoupling capacitor (e.g., 100nF) between the power supply pins (pins 1 and 8) and the ground pin (pin 4). Additionally, use a noise filter capacitor (e.g., 10nF) between the input pins (pins 2 and 3) and the ground pin (pin 4).
-
Yes, the TDA2822M can be used as a headphone amplifier, but it is recommended to use an external output capacitor (e.g., 100nF) to filter out high-frequency noise and ensure stable operation.
Trust Checks
Community Provided
System Verified
Community Approved
TDA2822M Overview

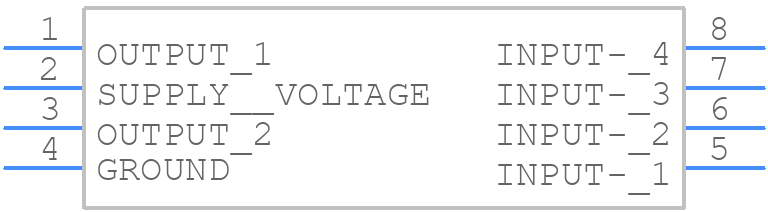

Use the download button to access the TDA2822M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA28,
or try a keyword search, such as Audio/Video Amplifiers
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
