TDA2SGBRQABCRQ1 - Texas Instruments

Description: Processors - Application Specialised SoC processor w/ highly-featured graphics, video & vision acceleration for ADAS applications 760-FCBGA -40 to 125

Download TDA2SGBRQABCRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TDA2SGBRQABCRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

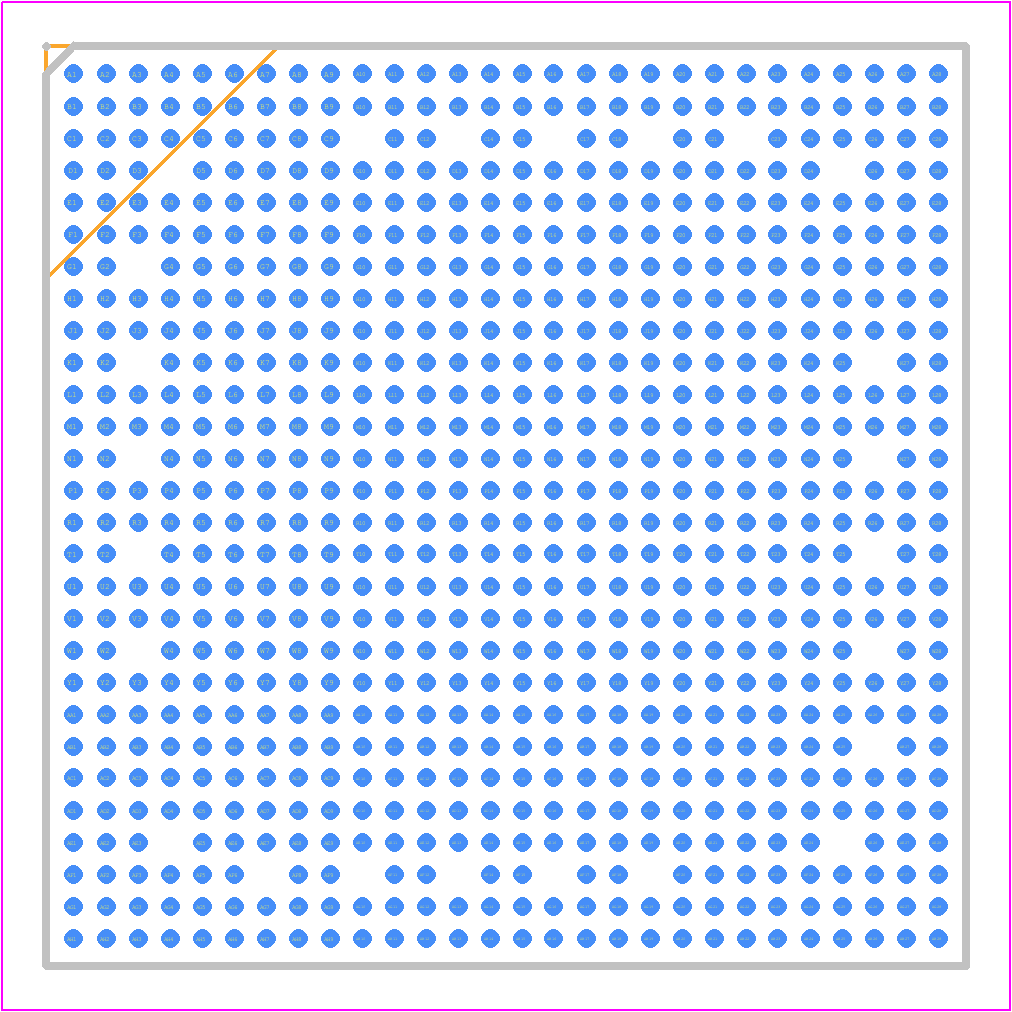

TDA2SGBRQABCRQ1 - Texas Instruments PCB footprint - BGA - BGA - ABC0760A
click to zoom
3D Models
TDA2SGBRQABCRQ1 - Texas Instruments - 3D model - BGA - ABC0760A
click to zoom

TDA2SGBRQABCRQ1 Details

  • Manufacturer Part Number:

    TDA2SGBRQABCRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B760

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    760

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.96 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.11 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

TDA2SGBRQABCRQ1 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the 1.8V core voltage (VDD_CORE) first, followed by the 3.3V I/O voltage (VDD_33). This ensures proper device operation and prevents latch-up.
  • For automotive applications, configure the device for ASIL-D safety integrity level by enabling the built-in safety features, such as ECC on DDR, and implementing a safety-oriented software framework. Additionally, ensure compliance with automotive standards like ISO 26262.
  • The maximum operating temperature range for the TDA2SGBRQABCRQ1 is -40°C to 125°C. However, the device can be operated at temperatures up to 150°C for short periods during device startup or fault conditions.
  • To optimize power consumption, use the device's power management features, such as dynamic voltage and frequency scaling, and implement power gating for unused peripherals. Additionally, optimize software to minimize CPU usage and leverage low-power modes.
  • The TDA2SGBRQABCRQ1 supports up to 32-bit DDR3/DDR3L memory interfaces, with a maximum bandwidth of 12.8 GB/s.
