TDA4862GGEGXUMA2 - Infineon

Description: PFC CONTROLLER, DCM, 19V, SOIC-8

Download TDA4862GGEGXUMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

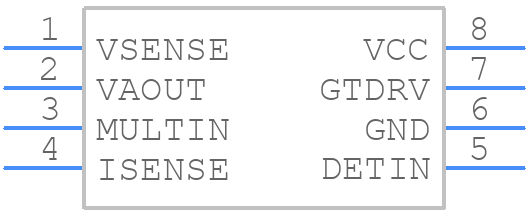

TDA4862GGEGXUMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA4862GGEGXUMA2 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8-1
click to zoom
3D Models
TDA4862GGEGXUMA2 - Infineon - 3D model - Small Outline Packages - PG-DSO-8-1
click to zoom

TDA4862GGEGXUMA2 Details

  • Manufacturer Part Number:

    TDA4862GGEGXUMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION
