TDA4AEN8J5AAMWRQ1 - Texas Instruments

TDA4AEN8J5AAMWRQ1 Details

• Manufacturer Part Number:

  TDA4AEN8J5AAMWRQ1

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.50

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO OPERATES AT 0.85V NOMINAL SUPPLY

• JESD-30 Code:

  S-PBGA-B594

• Length:

  18 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  594

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

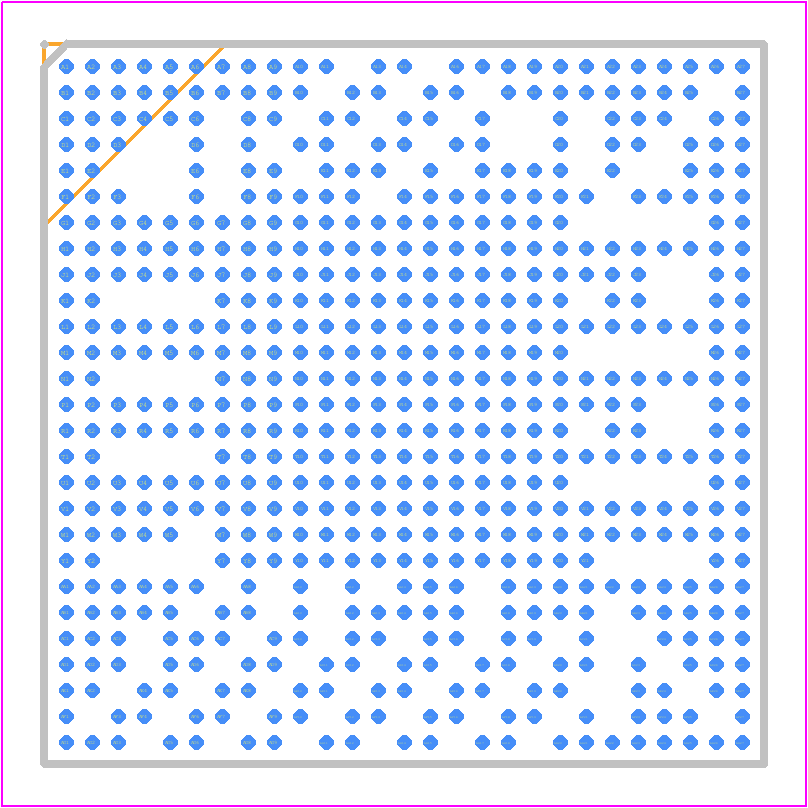

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA594,27X27,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  250

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.473 mm

• Supply Voltage-Max:

  0.79 V

• Supply Voltage-Min:

  0.715 V

• Supply Voltage-Nom:

  0.75 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  18 mm

• uPs/uCs/Peripheral ICs Type:

  SOC
