TDA4VM88TGBALFRQ1 - Texas Instruments

Description: ARM® Cortex®-A72, ARM® Cortex®-R5F, C66x, C7x System On Chip (SOC) IC Automotive, AEC-Q100 2GHz, 1GHz, 1.35GHz, 1GHz 827-FCBGA (24x24)

Download TDA4VM88TGBALFRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TDA4VM88TGBALFRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

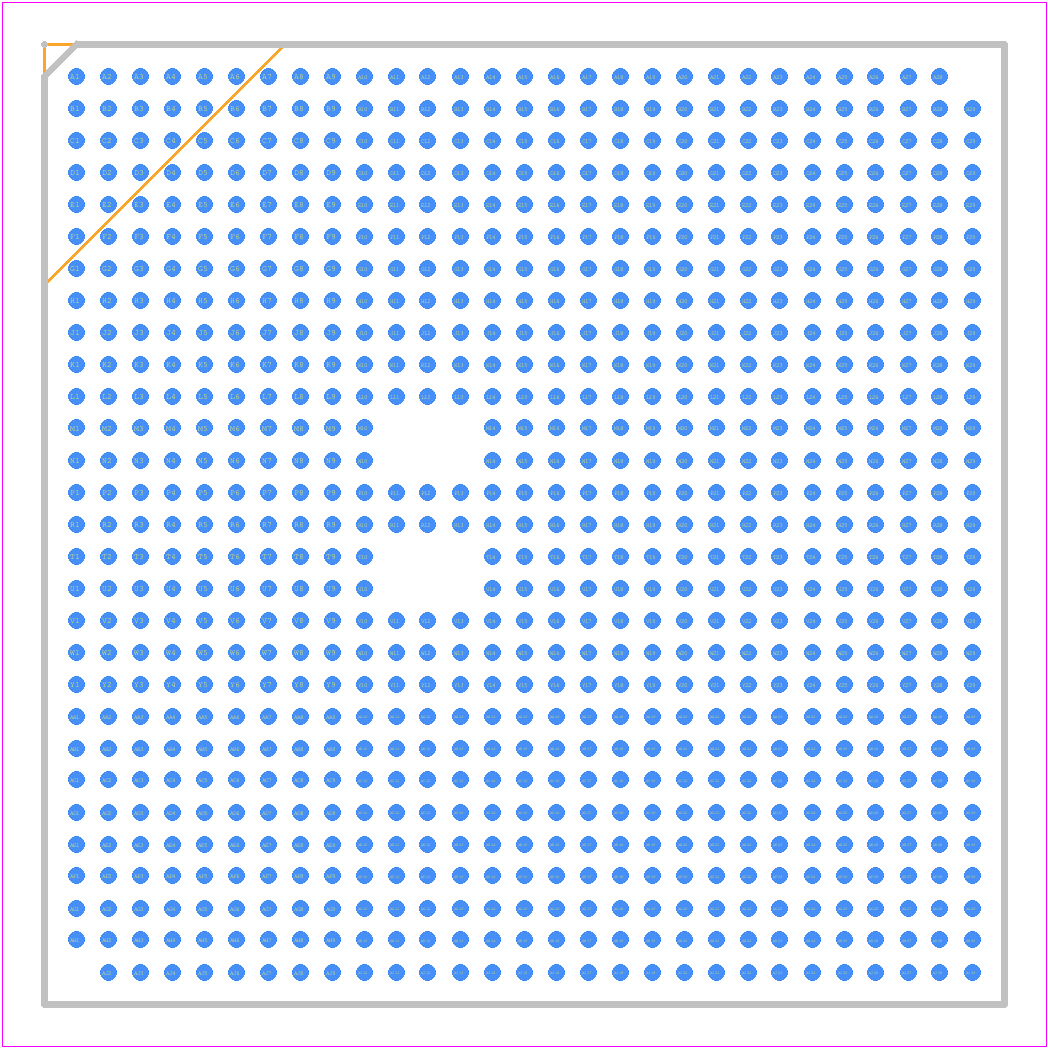

TDA4VM88TGBALFRQ1 - Texas Instruments PCB footprint - BGA - BGA - ALF0827A_2023
click to zoom
3D Models
TDA4VM88TGBALFRQ1 - Texas Instruments - 3D model - BGA - ALF0827A_2023
click to zoom

TDA4VM88TGBALFRQ1 Details

  • Manufacturer Part Number:

    TDA4VM88TGBALFRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B827

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    827

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA827,29X29,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    0.84 V

  • Supply Voltage-Min:

    0.76 V

  • Supply Voltage-Nom:

    0.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

TDA4VM88TGBALFRQ1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TDA4VM88TGBALFRQ1 is -40°C to 105°C.
  • The DDR memory interface on the TDA4VM88TGBALFRQ1 can be configured using the DDR PHY registers and the DDR controller registers. Refer to the TRM (Technical Reference Manual) for detailed information on configuring the DDR interface.
  • The maximum frequency of the Cortex-A72 cores on the TDA4VM88TGBALFRQ1 is 1.5 GHz.
  • The PCIe interface on the TDA4VM88TGBALFRQ1 can be used by configuring the PCIe controller registers and enabling the PCIe interface. Refer to the TRM for detailed information on configuring the PCIe interface.
  • The power consumption of the TDA4VM88TGBALFRQ1 varies depending on the operating frequency, voltage, and usage scenario. Refer to the datasheet for typical power consumption values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA4VM88TGBALFRQ1 Overview

Use the download button to access the TDA4VM88TGBALFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA4V, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TDA4VM88TGBALFRQ1

Showing 0 results
