TDA5100XUMA1 - Infineon

Description: RF Transmitter ASK, FSK 433MHz ~ 435MHz, 866MHz ~ 870MHz 5dBm 20kbps PCB, Surface Mount Antenna 16-TSSOP (0.173", 4.40mm Width)

Download TDA5100XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

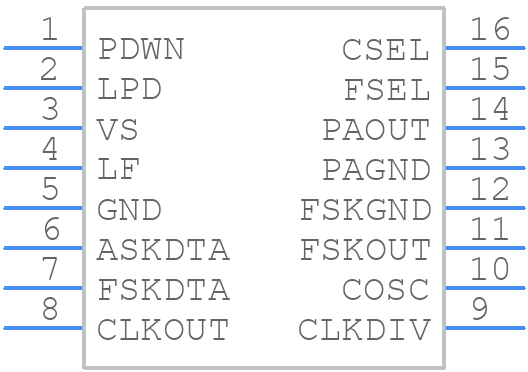

TDA5100XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA5100XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - P-TSSOP-16
click to zoom
3D Models
TDA5100XUMA1 - Infineon - 3D model - Small Outline Packages - P-TSSOP-16
click to zoom

TDA5100XUMA1 Details

  • Manufacturer Part Number:

    TDA5100XUMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    PLASTIC, TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TDA5100XUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a shielded cable for the USB interface.
  • Use a metal shield around the device, ensure good grounding, and use a common mode filter on the USB interface. Also, follow the recommended PCB layout and keep the analog and digital circuits separate.
  • The maximum operating temperature range for the TDA5100XUMA1 is -40°C to +85°C. However, the device can be operated at a reduced performance level up to +105°C.
  • The POR and BOD are handled internally by the device. The POR ensures that the device resets properly during power-on, and the BOD detects brown-out conditions and resets the device if necessary.
  • Use a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device's power pins. This ensures stable power supply and reduces noise.
