TDA5150HTMA1 - Infineon

Description: RF Transmitter ASK/FSK/GFSK 3.3V Automotive 10-Pin TSSOP T/R

Download TDA5150HTMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

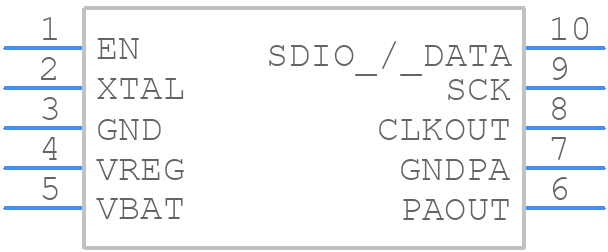

Symbol
TDA5150HTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA5150HTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - T SSOP-10
click to zoom
3D Models
TDA5150HTMA1 - Infineon - 3D model - Small Outline Packages - T SSOP-10
click to zoom

TDA5150HTMA1 Details

  • Manufacturer Part Number:

    TDA5150HTMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    GREEN, PLASTIC, TSSOP-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TDA5150HTMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate to dissipate heat efficiently.
  • Use a shielded enclosure, ensure proper grounding, and follow good PCB design practices such as separating analog and digital circuits. Additionally, use filters and chokes to reduce electromagnetic interference (EMI).
  • The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may damage the device.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, decoupling capacitors, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guidelines.
  • The TDA5150HTMA1 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.
