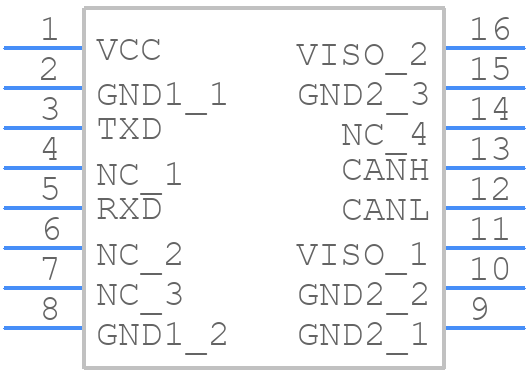

TDA51SCANHC - Mornsun Power

TDA51SCANHC Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  MORNSUN recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 1 oz copper thickness is recommended.
• How do I ensure reliable operation in high-temperature environments?
  To ensure reliable operation in high-temperature environments, MORNSUN recommends derating the output power by 1.5% per degree Celsius above 40°C. Additionally, ensure good airflow and thermal management around the device.
• What is the recommended input capacitor type and value for optimal performance?
  MORNSUN recommends using a low-ESR ceramic capacitor with a value of 10-22 μF and a voltage rating of 50-100 V. The capacitor should be placed as close to the VIN pin as possible.
• How do I protect the device from input voltage transients and surges?
  MORNSUN recommends using a TVS diode or a transient voltage suppressor (TVS) in parallel with the input capacitor to protect the device from input voltage transients and surges.
• What is the recommended output capacitor type and value for optimal performance?
  MORNSUN recommends using a low-ESR ceramic capacitor with a value of 10-22 μF and a voltage rating of 10-20 V. The capacitor should be placed as close to the VOUT pin as possible.
