TDA5736M-T - NXP

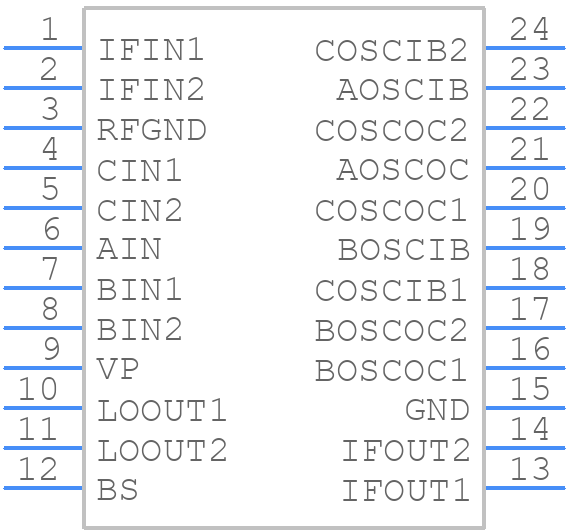

TDA5736M-T Details

• Manufacturer Part Number:

  TDA5736M-T

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  5.30 MM, PLASTIC, MO-150AG, SOT-340-1, SSOP-24

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Additional Feature:

  ALSO AVAILABLE FREQUENCY RANGES 166 MHZ-451 MHZ & 41 MHZ-171 MHZ

• Built-in IF Amplifier:

  YES

• Consumer IC Type:

  VIDEO TUNER

• Input Frequency-Max (RF):

  861 MHz

• Input Frequency-Min (RF):

  41 MHz

• JESD-30 Code:

  R-PDSO-G24

• Length:

  8.2 mm

• Noise Figure-Nom:

  9 dB

• Number of Bands:

  3

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  58 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
